Huato S220-T8 8 Channel Temperature Data Logger , Multi Channel Thermocouple Reader
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Fireproof ABS Plastic | Sensor Type: | External Probe |
|---|---|---|---|
| Temperature Range: | -200~+1800℃ | Optional: | Thermocouple Sensor Is Optional |
| Support Thermocouple Type: | K J E T R S N B | ||
| High Light: | multi channel temperature data logger,handheld thermocouple thermometer |
||
8 channels thermometer support K J E T R S N B type thermocouple data logger huato S220-T8
skype : huato.luo
Introduction :
S220-T8 8 channels thermocouple data logger developed, sale by HUATO, Which support 8type thermocouple sensor ,
like K, J, E, T, R, S, N, B type thermocouple. S220-T8 device support measuring -200~+1800 ℃
Features:
Both ℃ and ℉ are available.
Capacity : 86000 readings.
USB interface.
Professional analy software.
Check MAX MIN data.
Can export excel , PDF , BMP graph data sheet.
Specification :
|
Model
|
S220-T8 |
|
Support Measurement Range
|
-200~+1800℃ |
|
Resolution
|
0.1℃ |
|
Temperature Accuracy
|
±1℃±0.5%F.S. |
|
Recording capacity
|
8,6000 readings |
|
Log interval
|
2 seconds to 24hours |
|
Power supply
|
9V block battery |
|
Dimensions
|
L162 x W95 x H35mm |
|
Packing size
|
L305 * W240*H90mm |
|
Standard Accessories
|
9V Block Battery, user manual,USB cable, software |
| Catificate |
CE, ISO
|

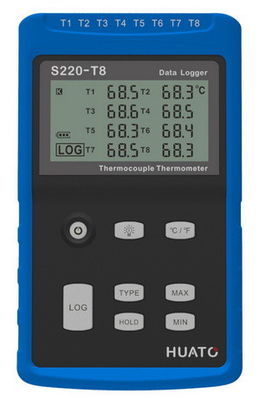

| ① LCD Screen | ⑧ MIN: Displaying minimum recorded value for all channels |
| ② Power On/Off | ⑨ HOLD:Lock the Value. |
| ③ LOG:Recording function button | ⑩ SB& DC 12V Port |
| ④ ℃/℉ Switch | ⑪ Thermocouple Sensor |
| ⑤ Screen Backlight | ⑫ Wall-mount hole |
| ⑥ TYPE:Switch for type of Sensor (K,J,E,T,R,S,N,B) | ⑬ Battery Cover |
| ⑦ MAX: Displaying maximum recorded value for all channels | ⑭ Back Stand |
Applications :
Widely use in industrial high temperature measurement.
