Workshop Temperature Humidity Data Logger Temperature Data Logger With External Probe

: Large Image : Workshop Temperature Humidity Data Logger Temperature Data Logger With External Probe

Product Details:

Place of Origin:	Mainland China
Brand Name:	HUATO
Certification:	CE,ISO
Model Number:	S500-ET-Printer

Payment & Shipping Terms:

Minimum Order Quantity:	3pcs
Price:	USD90~160/PCS
Packaging Details:	cartons
Delivery Time:	3~8working days
Payment Terms:	Western Union,paypal, T/T,
Supply Ability:	5000PCS/months

Contact Now

Detailed Product Description

Model:	S500-ET-Printer	Sensor Type:	External Single Temperature Sensor With 3 Meters Cable
Material:	Plastic	Temperature Range:	±0.5℃
Temperature Resolution:	0.1°C	Application:	Workshop
High Light:	calibrated temperature data logger , portable temperature data logger

External Single Temperature Sensor Deviation Calibration External Printer Temperature Data Logger

Introduction :

S500-ET-Printer alarm temperature data logger developed by HUATO company . This series logger featured with large LCD display, elegant appearance and hight precision, all the sensors are produced in USA , which assures accuracy and stability.

S500 series data logger build-in sound and light alarm function, that will alarm when exceed limit that users set up. In addition,different measuring range up to 100℃ with PT100 sensor.

Features:

Automatic Record function, mass storage function: 4,3000

Log interval : 2s to 24 hours

Large LCD display temperature , number of data stored as well as time simultaneously.

USB interface, download data to PC via USB cable.

Built-in sound & light alarm, when the data exceed the limit that user set up, device will alarm.

Easy to operate, can be placed on dexk or mounted on wall.

MAX/MIN function key to show the maximum/minimum value

Deviation calibrate the instrument.

Temperature Data Logger Model list
Model	S500-ET	S500-DT	S500-EPT	S500-DPT	S520-ET	S520-DT	S520-EPT	S520-DPT
Temperature Accuracy	±0.5℃	±0.5℃	±0.5℃	±0.5℃	±0.3℃	±0.3℃	±0.3℃	±0.3℃
Temperature Measurement Range	-40~+85℃	-40~+85℃	-100~+100℃	-100~+100℃	-40~+85℃	-40~+85℃	-100~+100℃	-100~+100℃
Sensor type	Single external sensor with 3meters cable	Dual external sensors with 3meters cable	Single external PT100 sensor with 2meters cable	Dual external PT100 sensors with 2meters cable	Single external sensor with 3meters cable	Dual external sensors with 3meters cable	Single external PT100 sensor with 2meters cable	Dual external PT100 sensors with 2meters cable
Sensor quantity	1	2	1	2	1	2	1	2
Channel	1	2	1	2	1	2	1	2
Resolution	0.1°C
Automatic Record Capacity	4,3000
Battery	*9V Block Battery 1**
Dimensions	*135mm 124mm * 35mm(5.31"4.88"1.37inch)**
LCD size	*97mm 78mm(3.81"1.37")*
Weight	380g
Standard Accessories	9V Block Battery, user manual,USB cable, software, screw
Optional Accessories	AC-DC adapter, printer,external sound & light alarm
Certificate	CE,ISO

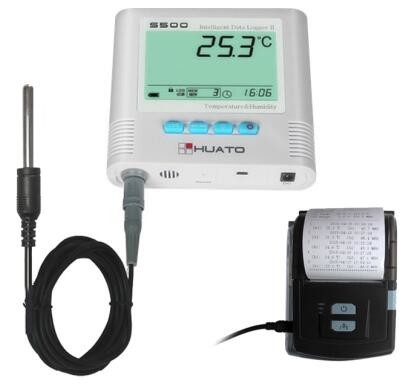

LCD Display Products image :

Workshop Temperature Humidity Data Logger Temperature Data Logger With External Probe

Applications:

Widely applied in agricultural research fields ,electronics, food industry, medical industry ,environmental protection, refrigerator and laboratory, etc.

Accessories :

Analyzed software, operation manual, USB cable, battery, adaptor
