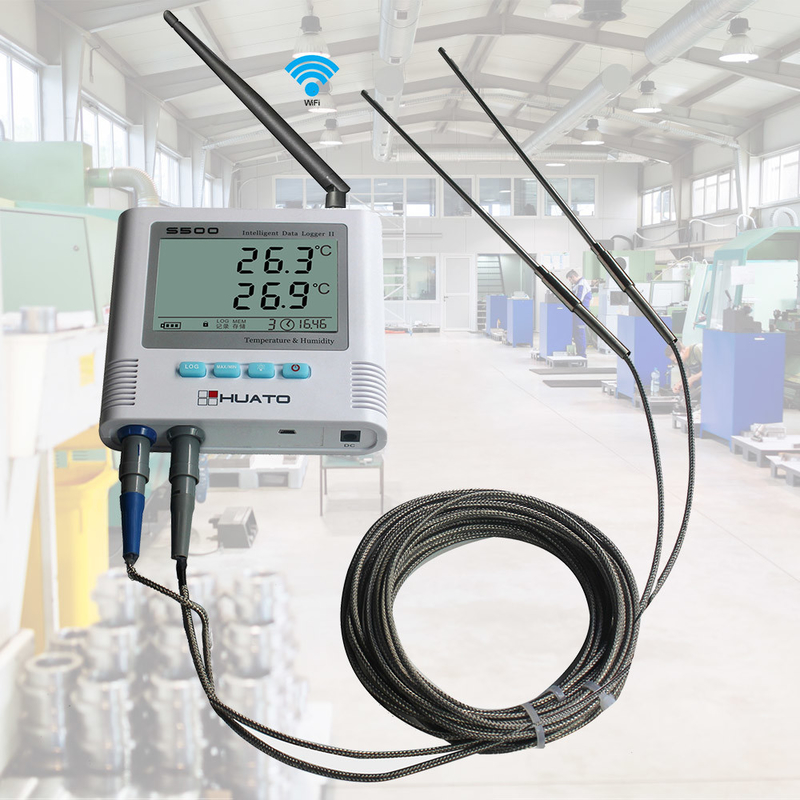

SMS Alarm / Email Alarm Wifi Data Logger Solution For Medical Convenient Operation
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model: | S500-EPT-WIFI | OEM: | Welcome |
|---|---|---|---|
| Lab: | HUATO Or Custom | Package: | Standard |
| Usage: | Monitoring | Advantage: | Remote Real-time |
| High Light: | wifi temperature humidity sensor,digital data logger |
||
Support various alarm SMS alarm and email alarm wifi data logger solution for medical
FEATURE :
C - Convenient operation creates convenient life.
O - Options of black and white housing.
M - Manage your home even when you are in any place around the world at any time.
F - Fashion design blends in with any décor.
O -Zero service fee.
R - Remote controlled by mobile APP or computer (WIFI).
T- Touch Screen display with backlight is easy to read-even in the dark.
A - Accuracy of 0.5 °C keeps your comfortable temperature within the level you set.
B - Breath Power button always remind you the world truely exist.
L - Lovely price helps you save not only energy.
E - Easy use, wifi interface
| Model | Sensor type | Measureing Range | Accuracy | Record Capacity | Resolution | Weight |
|---|---|---|---|---|---|---|
| S500-EX-WiFi | External temperature &humidity sensor | -40~85℃/0~100%RH | ±0.5℃/±5%RH | 6,5000 | 0.1°C / 0.1%RH | 380g |
| S500-ET-WiFI | Single external temperature sensor | -40~+85℃ | ±0.5℃ | 0.1°C | ||
| S500-DT-WiFi | Dual external temperature sensor | -40~+85℃ | ±0.5℃ | 0.1°C | ||
| S500-EPT-WiFi | Single external PT100 sensor | -100~+100℃ | ±0.5℃ | 0.1°C | ||
| S500-DPT-WiFi | Dual external PT100 sensor | -100~+100℃ | ±0.5℃ | 0.1°C |
network topology
There are many monitoring base station in this system, it adopt TCP/IP protocol to ensure networking reliability and use Ethernet and wireless hybrid networking. The base station collects data and transmit it to Tomonitor server in real-time.
This system adopt client/server framework, it will not be affected when some monitoring points are out of order. We greatly improved system reliability by unite monitoring, independent measurement and control. Below is the network topology of this system.
