Remote Temperature Monitor GSM Data Logger With External PT100 Sensor

I'm Online Chat Now

Remote Temperature Monitor GSM Data Logger With External PT100 Sensor

China Remote Temperature Monitor GSM Data Logger With External PT100 Sensor supplier
Remote Temperature Monitor GSM Data Logger With External PT100 Sensor supplier Remote Temperature Monitor GSM Data Logger With External PT100 Sensor supplier Remote Temperature Monitor GSM Data Logger With External PT100 Sensor supplier Remote Temperature Monitor GSM Data Logger With External PT100 Sensor supplier

Large Image :  Remote Temperature Monitor GSM Data Logger With External PT100 Sensor

Product Details:

Place of Origin: Made in China
Brand Name: Huato
Certification: CE
Model Number: S500-EPT-GSM

Payment & Shipping Terms:

Minimum Order Quantity: 1uint Remote Temperature Monitor GSM Data Logger With External PT100 sensor for laboratory freezer use Huato S500-EPT-GSM
Price: negotiable
Packaging Details: Standard Carton Box
Delivery Time: 1 working day
Payment Terms: T/T, Western Union. paypal, RMB
Supply Ability: 5000units per month
Contact Now
Detailed Product Description
Description: Remote Temperature Monitor GSM Data Logger With External PT100 Sensor For Laboratory Freezer Use Huato S500-EPT-GSM Temperature Precision: ±0.5℃
Temperature Range: -100~+260℃ Application: Refrigerator + Freezer + Laboratory + Cold Truck + Cold Room + Warehouse
Reading Capacity: 65000 Readings Resolution: 0.1°C
Weight: 380g Battery: 9V Block Battery *1
Dimensions: 135mm * 124mm * 35mm(5.31"*4.88"*1.37inch) Sensor Type: External PT100 Sensor
Email Info: Sale01@huato.com Skype Info: Huato.Tina
Warranty Period: 365 Days
High Light:

gsm temperature monitor

,

sms data logger

Remote Temperature Monitor GSM Data Logger With External PT100 sensor for laboratory freezer use Huato S500-EPT-GSM





1. Introduction



HUATO Digital GSM alarm temperature and humidity logger is widely used in the medical industry, electronic industry, food industry, the transport industry, the meteorological industry, textile industry, HVAC refrigeration, file management, agricultural research, biochemistry lab as well as hospitality industry and food and beverage business.We believe HUATO instruments and meters can satisfy your various requirements perfectly.







2. Working princeple



1) If user defined maxi/mini temperature values are exceeded, our device will send SMS to USER’S Mobile phone. We list the GSM alarm example picture as follows:



Remote Temperature Monitor GSM Data Logger With External PT100 Sensor



MobilePhone Tex example as follows:

Remote Temperature Monitor GSM Data Logger With External PT100 Sensor





2) When the Temperature returned to normal range ,our device will sent the GSM to user again.



Example as follow:

Remote Temperature Monitor GSM Data Logger With External PT100 Sensor



3). User can user can keep track of Real-time temperature



When the user call to device and device will sent SMS to tell user what the temperature and humidity at anytime.



Remote Temperature Monitor GSM Data Logger With External PT100 Sensor





3. Features



Measure temperature and humidity with external sensor.



1) Capacity 43,000-86,000 data memory.



2) Large LCD display to show logging information easily.



3) GSM,sound light Alarm if user-defined maximum/minimum values are exceeded.



4) Analysis software used to view graph, specific data and analysis for logging data.



5) Log interval: 2s-24h .



6) Backlight display shows more clearly.



7) External power or battery supply.Display show the battery indicator.







4. Production data sheet





Model Accuracy Measuring range Sensor type Capacity
S500-TH-GSM ±0.5°C/±5%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S500-EX-GSM ±0.5°C/±3%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S520-TH-GSM ±0.3°C/±3%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S520-EX-GSM ±0.3°C/±3%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S580-TH-GSM ±0.2°C/±2%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S580-EX-GSM ±0.2°C/±2%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S500-ET-GSM ±0.5°C -40~85°C Single Temperature external sensor with 3 meters 43000
S520-DT-GSM ±0.5°C -40~85°C Dual Temperature external sensor with 3 meters 43000
S520-ET-GSM ±0.3°C -40~85C Single Temperature external sensor with 3 meters 43000
S520-DT-GSM ±0.3°C -40~85°C Dual Temperature external sensor with 3 meters 43000







5. Technical Parameters




Resolution Temperature: ±0.1C, humidity: ±0.1%RH
Powe supply 9V block battery
Display Large lcd display
Dimension 135* 124 *35mm (5.31 *4.88*1.37 inch)
Lcd size 97*78mm (3.81*1.37 inch)
Weight 330g
Accessories

Toanalyzer software CD, USB connection cable, calibration certificate,

Warranty card and gifr box with carrying case.

Interface USB(U)





6.Production picture

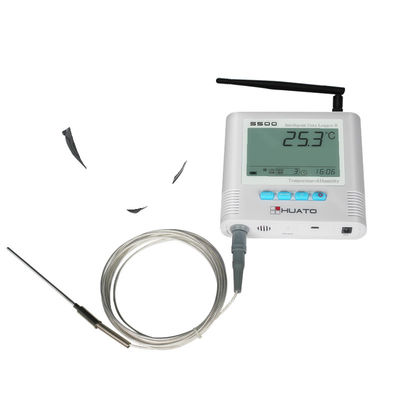

Remote Temperature Monitor GSM Data Logger With External PT100 Sensor





Remote Temperature Monitor GSM Data Logger With External PT100 Sensor



Remote Temperature Monitor GSM Data Logger With External PT100 Sensor
