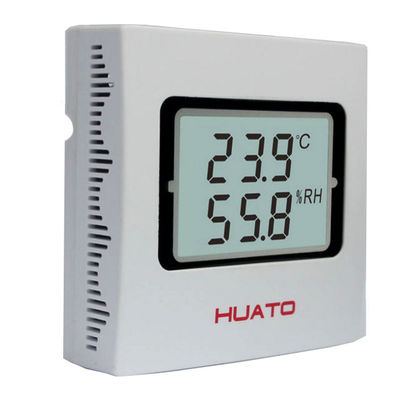

High Precision Temperature And Humidity Monitor / Humidity Measuring Device

Certification
Good quality Digital Thermometer Hygrometer for sales
Good quality Digital Thermometer Hygrometer for sales
I'm Online Chat Now

High Precision Temperature And Humidity Monitor / Humidity Measuring Device

China High Precision Temperature And Humidity Monitor / Humidity Measuring Device supplier
High Precision Temperature And Humidity Monitor / Humidity Measuring Device supplier High Precision Temperature And Humidity Monitor / Humidity Measuring Device supplier

Large Image :  High Precision Temperature And Humidity Monitor / Humidity Measuring Device

Product Details:

Place of Origin: Mainland China
Brand Name: HUATO
Certification: ISO9001,ISO14001,ISO18001,CE
Model Number: HE400V5-EX

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: According to customer's requirements
Delivery Time: 7-15 working days
Payment Terms: T/T,paypal,
Supply Ability: 10000pcs/months
Contact Now
Detailed Product Description
Brand Name: HUATO Model Number: HE400V5-EX
Voltage Output: 0~5V Theory: Temperature Humidity Transmitter
Didplay: LCD Colour: White
Place Of Origin: Shenzhen ,China Humidity Range: 0~100%RH
Temperature Accuracy: ±0.5℃ Humidity Accuracy: ±3%RH
Resolution: 0.1℃/0.1%RH Temperature Range: -30~70℃
Power Supply: 16~30V

          Transmitter voltage Temperature Humidity Sensor 0~5V output HE400V5-EX

Introduction:



HE400V5-EX a HUATO transmitter that turns emperature and humidity signals into voltage signals. it adopt high-performance sensors from Switzerland ,the stability is guaranteed . This series transmitter supports four kinds of output, RS485 and Standard Modbus protocol/ Voltage and Current and this model support voltage output. It has a special design features to get rid of the heat influence of the circuit. Its measuring range is wide , and accuracy is high . All HUATO HE400 series equipped with a LCD display , which simultaneously displays the temperature and humidity value. it has external probe. You can choose the right model according to the datasheet below.

Features:

It uses external sensor and high-performance low-power SCM design.
It adopt Industrial design, effectively advoid the heat influence generated from within.
Various outputs 4~20mA/0~5V/0~10V/RS485/Modbus user selectable.
Install and maintain and use is easy.
It is a high accuracy, practical device.
Dimensions : 100*100*30mm(3.94"*3.94*1.28"inch)
LCD size: 60*40mm(2.36"*1.57"inch)
Certificates this product acquired : CE,ISO





Models list and specifications :


Model HE400A HE400A-EX HE400V5 HE400V5-EX HE400V10 HE400V10-EX
Temperature Accuracy ±0.5℃
Humidity Accruacy ±3%RH
Temperature Range 0~50℃ -30~70℃ 0~50℃ -30~70℃ 0~50℃ -30~70℃
Humidity Range 0~100%RH
Sensor type Internal External with 3 meters cable Internal External with 3 meters cable Internal External with 3 meters cable
Output 4~20mA 0~5V 0~10V
Wire mode 3 lead terminals 4 lead terminals
Resolution 0.1℃/0.1%RH
Power supply 9V~30V DC
Net weight 280g
Accessory Operation manual
Model List(modbus/RS 485)
Model HE400M HE400M-EX HE400N HE400N-EX
Temperature Accuracy ±0.5℃
Humidity Accruacy ±3%RH
Temperature Range 0~50℃ -30~70℃ 0~50℃ -30~70℃
Humidity Range 0~100%RH
Sensor type Internal External with 3 meters cable Internal External with 3 meters cable
Output Modbus RS485
Wire mode 4lead terminals
Resolution 0.1℃/0.1%RH
Power supply 9V~30V DC
Net weight 280g
Accessory Operation manual



Product pictures
High Precision Temperature And Humidity Monitor / Humidity Measuring Device

High Precision Temperature And Humidity Monitor / Humidity Measuring Device

High Precision Temperature And Humidity Monitor / Humidity Measuring Device

Applications:

      HE400 series temperature humidity transmitter has been widely use in the following sectors : pharmacy , chean rooms, ventilation ducts, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .

High Precision Temperature And Humidity Monitor / Humidity Measuring DeviceHigh Precision Temperature And Humidity Monitor / Humidity Measuring DeviceHigh Precision Temperature And Humidity Monitor / Humidity Measuring Device
