Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor

I'm Online Chat Now

Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor

China Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor supplier
Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor supplier Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor supplier Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor supplier Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor supplier Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor supplier Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor supplier

Large Image :  Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor

Product Details:

Place of Origin: Mainland China
Brand Name: HUATO
Certification: ISO9001,ISO14001,ISO18001,CE
Model Number: HE400N

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: According to customer's requirements
Delivery Time: 7-15 working days
Payment Terms: T/T,paypal,
Supply Ability: 10000pcs/months
Contact Now
Detailed Product Description
Brand Name: HUATO Model Number: HE400N
Voltage Output: 0~5V Theory: Temperature Humidity Transmitter
Didplay: LCD Place Of Origin: Shenzhen ,China
Humidity Range: 0~100%RH Temperature Accuracy: ±0.5℃
Resolution: 0.1℃/0.1%RH Temperature Range: -30~70℃
Power Supply: 16~30V Input Means: RS485
High Light:

remote temperature transmitter

,

voltage data logger

Transmitter industrial voltage Temperature Humidity Sensor RS485 input HE400N

Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor

Introduction:


HE400N transmitter can help to output temperature, relative humidity signals via RS485 protocol , the quality and stability is excellent. This transmitter adopt high-performance sensors and low-power SCM. This transmitter supports RS485 output, other output means like Modbus protocol/ Voltage and Current output are optional . It design with a unique features to avoid the influence of heat. It enjoy wide measuring range and high accuracy. The HE400 series temperature and humidity transmitter all equipped with LCD display , it displays temperature and humidity value. What is more, it has internal sensor. Customers can choose the models needed from the datasheet below.


Low Power SCM Temperature Humidity Transmitter / Temperature Humidity SensorFeatures:

  • Uses high-performance low-power SCM.

    Professional industrial design, advoid circuit heat.

    4~20mA/0~5V/0~10V/RS485/Modbus output means user selectable.

    It is Very easy to install and maintain this device .

    High accuracy and practical.

    Product dimensions: 100*100*30mm(3.94"*3.94*1.28"inch)

    LCD dimensions : 60*40mm(2.36"*1.57"inch)

    Product’s Certificate: CE,ISO




Low Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor

Models list and specifications :


Model HE400A HE400A-EX HE400V5 HE400V5-EX HE400V10 HE400V10-EX
Temperature Accuracy ±0.5℃
Humidity Accruacy ±3%RH
Temperature Range 0~50℃ -30~70℃ 0~50℃ -30~70℃ 0~50℃ -30~70℃
Humidity Range 0~100%RH
Sensor type Internal External with 3 meters cable Internal External with 3 meters cable Internal External with 3 meters cable
Output 4~20mA 0~5V 0~10V
Wire mode 3 lead terminals 4 lead terminals
Resolution 0.1℃/0.1%RH
Power supply 9V~30V DC
Net weight 280g
Accessory Operation manual
Model List(modbus/RS 485)
Model HE400M HE400M-EX HE400N HE400N-EX
Temperature Accuracy ±0.5℃
Humidity Accruacy ±3%RH
Temperature Range 0~50℃ -30~70℃ 0~50℃ -30~70℃
Humidity Range 0~100%RH
Sensor type Internal External with 3 meters cable Internal External with 3 meters cable
Output Modbus RS485
Wire mode 4lead terminals
Resolution 0.1℃/0.1%RH
Power supply 9V~30V DC
Net weight 280g
Accessory Operation manual

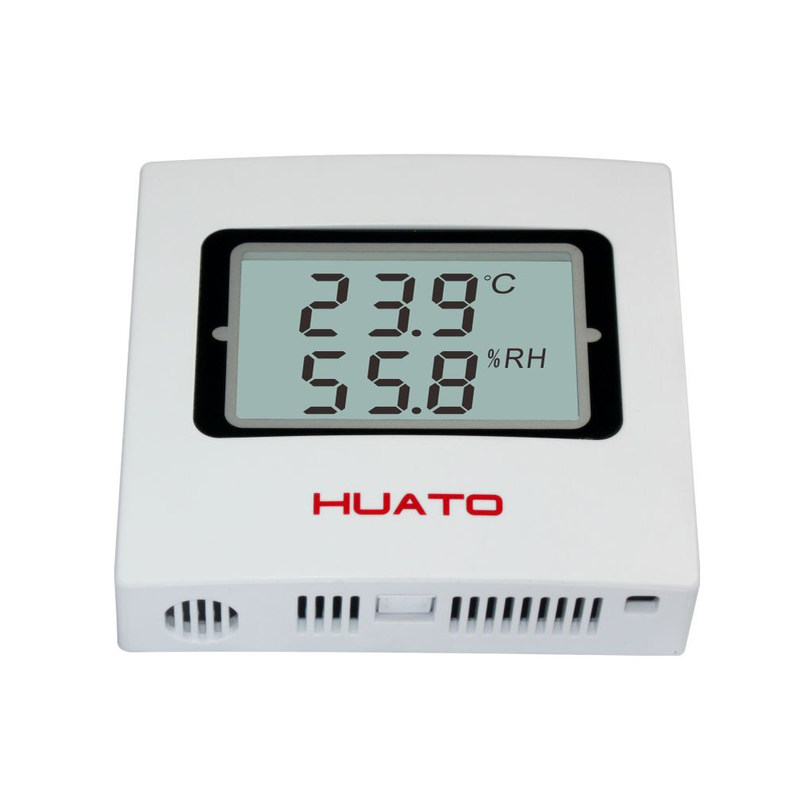

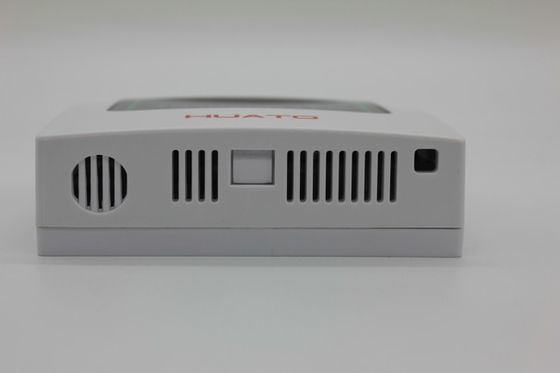

Product pictures





Low Power SCM Temperature Humidity Transmitter / Temperature Humidity SensorLow Power SCM Temperature Humidity Transmitter / Temperature Humidity SensorLow Power SCM Temperature Humidity Transmitter / Temperature Humidity SensorLow Power SCM Temperature Humidity Transmitter / Temperature Humidity SensorLow Power SCM Temperature Humidity Transmitter / Temperature Humidity Sensor












Applications:

      HE400 series can be use in use in : pharmacy , chean rooms, ventilation ducts, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .
