Product Details:

Place of Origin: Mainland China
Brand Name: HUATO
Certification: ISO9001,ISO14001,ISO18001,CE
Model Number: HE200M-EX

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: According to customer's requirements
Delivery Time: 7-15 working days
Payment Terms: T/T,paypal,
Supply Ability: 10000pcs/months
Contact Now
Detailed Product Description
Brand Name: HUATO Model Number: HE200N-EX
Output: RS485 Temperature Measuring: -30~70℃
Theory: Temperature Humidity Transmitter Material: ABS
Colour: White Place Of Origin: Shenzhen ,China
Humidity Range: 0~100%RH Temperature Accuracy: ±0.5℃
Humidity Accuracy: ±3%RH Resolution: 0.1℃/0.1%RH

                Transmitter digital temperature Humidity external Sensor modbus HE200N-EX



Introduction:


HE200N-EX is a temperature and humidity transmitter, it uses imported sensors, components and high-performance SCM design. This series are industrial class transmitter . To avoid the influence of circuit heat generated within the device, unique design was given to this device to avoid the influence of heat. it enjoy wide measuring range and high accuracy. With this transmitter temperature, relative humidity signals can be output by RS484 . what is more , it has external probe. Please choose the model you want buy using the following datasheet.

Features:

  • It uses imported sensor and low-power consumption SCM .

    Adopt design to avoid influence caused by circuit heat.

    Output: modbus .

    Easy to install and maintain.

    Highly accurate and Economical

    Product dimensions: 100*100*30mm(3.94"*3.94*1.28"inch)

    LCD size: 60*40mm(2.36"*1.57"inch)

    Certificates : CE,ISO


Models list and specifications :



Models List
Model HE200A HE200A-EX HE200V5 HE200V5-EX HE200V10 HE200V10-EX
Temperature Accuracy ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃
Humidity Accuracy ±3%RH ±3%RH ±3%RH ±3%RH ±3%RH ±3%RH
Temperature Range 0~50℃ -30~70℃ 0~50℃ -30~70℃ 0~50℃ -30~70℃
Humidity Range 0~100%RH 0~100%RH 0~100%RH 0~100%RH 0~100%RH 0~100%RH
Sensor type Internal External with 3 meters cable Internal External with 3 meters cable Internal External with 3 meters cable
Output 4~20mA 4~20mA 0~5V 0~5V 0~10V 0~10V
Wire mode 3 lead terminals 4 lead terminals
Resolution 0.1℃/0.1%RH
Power supply 9V~30V DC
Net weight 280g
Accessory Operation manual






Models List
Model HE200M HE200M-EX HE200N HE200N-EX
Temperature Accuracy ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃
Humidity Accuracy ±3%RH ±3%RH ±3%RH ±3%RH
Temperature Range 0~50℃ -30~70℃ 0~50℃ -30~70℃
Humidity Range 0~100%RH 0~100%RH 0~100%RH 0~100%RH
Sensor type Internal External with 3 meters cable Internal External with 3 meters cable
Output Modbus Modbus RS485 RS485
Wire mode 4lead terminals 4 lead terminals
Resolution 0.1℃/0.1%RH
Power supply 9V~30V DC
Net weight 280g
Accessory Operation manual

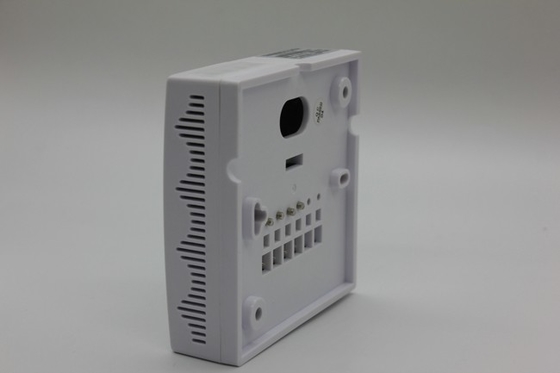

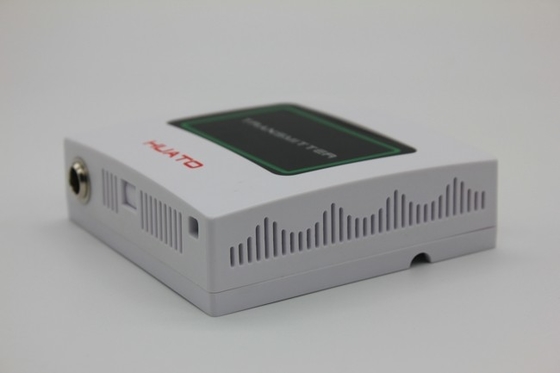

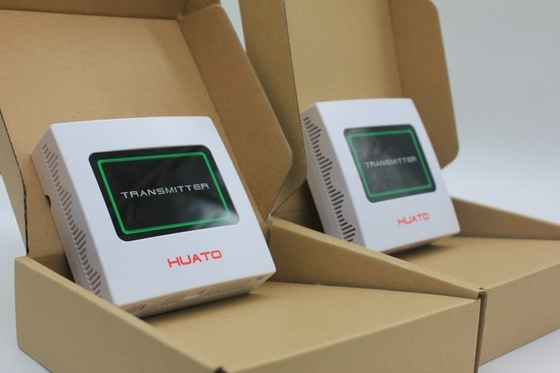

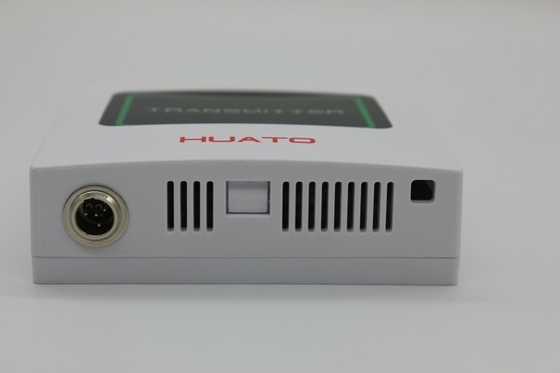

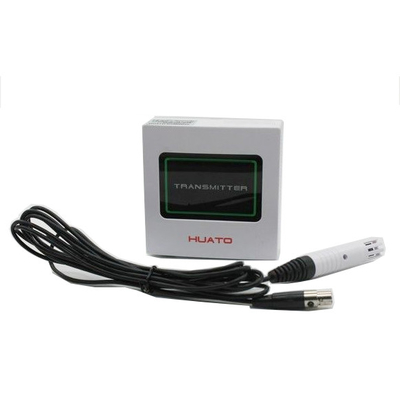

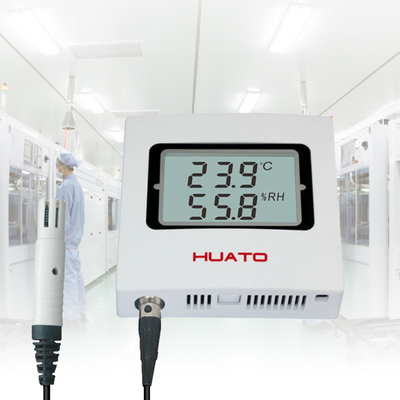

Product pictures



High Accurate Humidity Meter Instrument To Measure Relative Humidity Easy InstallHigh Accurate Humidity Meter Instrument To Measure Relative Humidity Easy InstallHigh Accurate Humidity Meter Instrument To Measure Relative Humidity Easy InstallHigh Accurate Humidity Meter Instrument To Measure Relative Humidity Easy InstallHigh Accurate Humidity Meter Instrument To Measure Relative Humidity Easy Install













Applications:

    HE200 series temperature humidity transmitter can be use in fileids like : pharmacy, chean rooms,  industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .
