Room Temperature Transmitter Device To Measure Temperature And Humidity

Certification
Good quality Digital Thermometer Hygrometer for sales
Good quality Digital Thermometer Hygrometer for sales
I'm Online Chat Now

Room Temperature Transmitter Device To Measure Temperature And Humidity

China Room Temperature Transmitter Device To Measure Temperature And Humidity supplier
Room Temperature Transmitter Device To Measure Temperature And Humidity supplier Room Temperature Transmitter Device To Measure Temperature And Humidity supplier Room Temperature Transmitter Device To Measure Temperature And Humidity supplier Room Temperature Transmitter Device To Measure Temperature And Humidity supplier Room Temperature Transmitter Device To Measure Temperature And Humidity supplier

Large Image :  Room Temperature Transmitter Device To Measure Temperature And Humidity

Product Details:

Place of Origin: Mainland China
Brand Name: HUATO
Certification: ISO9001,ISO14001,ISO18001,CE
Model Number: HE200M

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: According to customer's requirements
Delivery Time: 7-15 working days
Payment Terms: T/T,paypal,
Supply Ability: 10000pcs/months
Contact Now
Detailed Product Description
Brand Name: HUATO Model Number: HE200M
Output: Modbus Temperature Measuring: -30~70℃
Theory: Transmitter Material: ABS
Place Of Origin: Shenzhen ,China Colour: White
Humidity Range: 0~100%RH Temperature Accuracy: ±0.5℃
Humidity Accuracy: ±3%RH Resolution: 0.1℃/0.1%RH



                         Transmitter temperature Humidity modbus output external Sensor HE200M



Introduction:


HE200M is temperature, relative humidity transmitter, was developed by HUATO, adopt imported sensors, components and low-power consumption SCM design, which assure the quality and stability. This series are industrial class senso, it can support Voltage output. It has unique design features to ensure that the heat generated by circuit board will not influence the measuring. They can be mounted on wall and enjoy wide measuring range and high accuracy. With this transmitter temperature and humidity signals can be out put by the means of modbus . In addition, it has internal probe.

Features:

  • Adopt import components and high-performance SCM design.

    Professional industrial design, avoid the test influence caused by circuit heat.

    Enjoy various outputs, 4~20mA/0~5V/0~10V/RS485/Modbus output.

    Enjoy patent technique, very easy to install and maintain.

    Enjoy high accuracy. Economical and practical.

    Product dimensions: 100*100*30mm(3.94"*3.94*1.28"inch)

    LCD size: 60*40mm(2.36"*1.57"inch)

    Certificate: CE,ISO


Models list and it's specifications :



Models List
Model HE200A HE200A-EX HE200V5 HE200V5-EX HE200V10 HE200V10-EX
Temperature Accuracy ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃
Humidity Accuracy ±3%RH ±3%RH ±3%RH ±3%RH ±3%RH ±3%RH
Temperature Range 0~50℃ -30~70℃ 0~50℃ -30~70℃ 0~50℃ -30~70℃
Humidity Range 0~100%RH 0~100%RH 0~100%RH 0~100%RH 0~100%RH 0~100%RH
Sensor type Internal External with 3 meters cable Internal External with 3 meters cable Internal External with 3 meters cable
Output 4~20mA 4~20mA 0~5V 0~5V 0~10V 0~10V
Wire mode 3 lead terminals 4 lead terminals
Resolution 0.1℃/0.1%RH
Power supply 9V~30V DC
Net weight 280g
Accessory Operation manual






Models List
Model HE200M HE200M-EX HE200N HE200N-EX
Temperature Accuracy ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃
Humidity Accuracy ±3%RH ±3%RH ±3%RH ±3%RH
Temperature Range 0~50℃ -30~70℃ 0~50℃ -30~70℃
Humidity Range 0~100%RH 0~100%RH 0~100%RH 0~100%RH
Sensor type Internal External with 3 meters cable Internal External with 3 meters cable
Output Modbus Modbus RS485 RS485
Wire mode 4lead terminals 4 lead terminals
Resolution 0.1℃/0.1%RH
Power supply 9V~30V DC
Net weight 280g
Accessory Operation manual

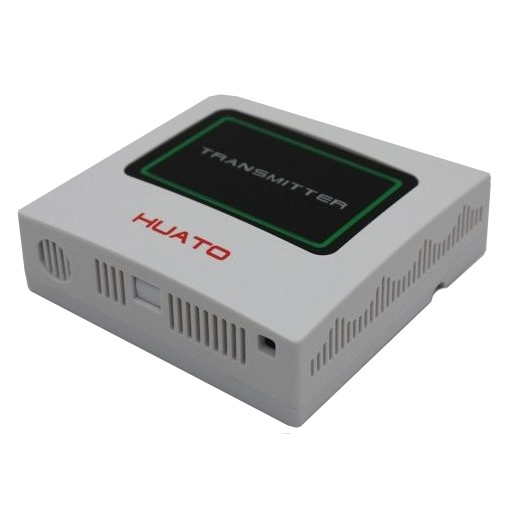

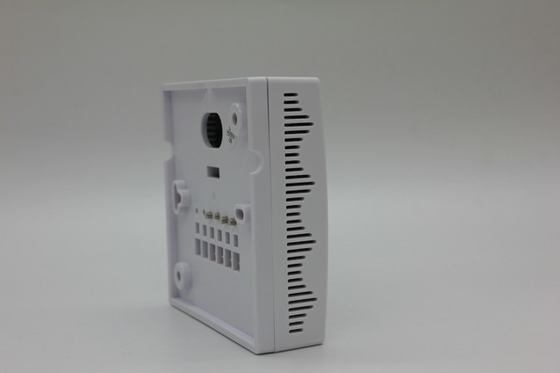

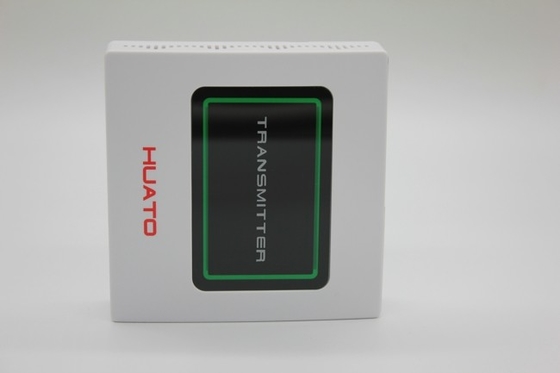

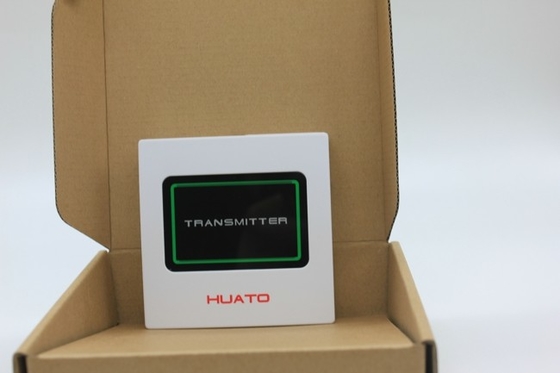

Product pictures

Room Temperature Transmitter Device To Measure Temperature And HumidityRoom Temperature Transmitter Device To Measure Temperature And HumidityRoom Temperature Transmitter Device To Measure Temperature And HumidityRoom Temperature Transmitter Device To Measure Temperature And HumidityRoom Temperature Transmitter Device To Measure Temperature And Humidity
















Applications:

    HE200 series temperature humidity transmitter has been widely use in applications in following sectors : pharmacy, chean rooms,  industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .

Room Temperature Transmitter Device To Measure Temperature And HumidityRoom Temperature Transmitter Device To Measure Temperature And HumidityRoom Temperature Transmitter Device To Measure Temperature And Humidity
