Modbus Output Temperature And Humidity Transmitter Instrument To Measure Humidity

Certification
Good quality Digital Thermometer Hygrometer for sales
Good quality Digital Thermometer Hygrometer for sales
I'm Online Chat Now

Modbus Output Temperature And Humidity Transmitter Instrument To Measure Humidity

China Modbus Output Temperature And Humidity Transmitter Instrument To Measure Humidity supplier
Modbus Output Temperature And Humidity Transmitter Instrument To Measure Humidity supplier Modbus Output Temperature And Humidity Transmitter Instrument To Measure Humidity supplier Modbus Output Temperature And Humidity Transmitter Instrument To Measure Humidity supplier Modbus Output Temperature And Humidity Transmitter Instrument To Measure Humidity supplier Modbus Output Temperature And Humidity Transmitter Instrument To Measure Humidity supplier

Large Image :  Modbus Output Temperature And Humidity Transmitter Instrument To Measure Humidity

Product Details:

Place of Origin: Mainland China
Brand Name: HUATO
Certification: ISO9001,ISO14001,ISO18001,CE
Model Number: HE200M-EX

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: According to customer's requirements
Delivery Time: 7-15 working days
Payment Terms: T/T,paypal,
Supply Ability: 10000pcs/months
Contact Now
Detailed Product Description
Brand Name: HUATO Model Number: HE200M-EX
Output: Modbus Temperature Measuring: -30~70℃
Theory: Temperature Humidity Transmitter Material: ABS
Didplay: LCD Colour: White
Place Of Origin: Shenzhen ,China Humidity Range: 0~100%RH
Temperature Accuracy: ±0.5℃ Humidity Accuracy: ±3%RH
Resolution: 0.1℃/0.1%RH


          Transmitter industrial current temperature Humidity external Sensor modbus HE200M-EX



Introduction:


HE200 series are temperature, relative humidity transmitters, equipped imported sensors and adopt high-performance low-power SCM design. This series support four kinds of output, RS485 and Standard Modbus protocol/ Voltage and Current.it has a unique design feature to ensure no circuit heat influence from themselves. They are wall-mounted and high accuracy. you can  choose models with internal or external sensor according to your needs.

Features:



  • con imported components and high-performance low power consumption SCM design.
  • con Professional industrial design, advoid the influence caused by circuit heating.
  • con various outputs, 4~20mA/0~5V/0~10V/RS485/Modbus output.
  • con easy to install and maintain.
  • con high accuracy. Economical and practical.
  • con Product dimensions: 100*100*30mm(3.94"*3.94*1.28"inch)
  • con LCD size: 60*40mm(2.36"*1.57"inch)
  • con Certificate: CE,ISO


Models list and specifications :



Models List
Model HE200A HE200A-EX HE200V5 HE200V5-EX HE200V10 HE200V10-EX
Temperature Accuracy ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃
Humidity Accuracy ±3%RH ±3%RH ±3%RH ±3%RH ±3%RH ±3%RH
Temperature Range 0~50℃ -30~70℃ 0~50℃ -30~70℃ 0~50℃ -30~70℃
Humidity Range 0~100%RH 0~100%RH 0~100%RH 0~100%RH 0~100%RH 0~100%RH
Sensor type Internal External with 3 meters cable Internal External with 3 meters cable Internal External with 3 meters cable
Output 4~20mA 4~20mA 0~5V 0~5V 0~10V 0~10V
Wire mode 3 lead terminals 4 lead terminals
Resolution 0.1℃/0.1%RH
Power supply 9V~30V DC
Net weight 280g
Accessory Operation manual






Models List
Model HE200M HE200M-EX HE200N HE200N-EX
Temperature Accuracy ±0.5℃ ±0.5℃ ±0.5℃ ±0.5℃
Humidity Accuracy ±3%RH ±3%RH ±3%RH ±3%RH
Temperature Range 0~50℃ -30~70℃ 0~50℃ -30~70℃
Humidity Range 0~100%RH 0~100%RH 0~100%RH 0~100%RH
Sensor type Internal External with 3 meters cable Internal External with 3 meters cable
Output Modbus Modbus RS485 RS485
Wire mode 4lead terminals 4 lead terminals
Resolution 0.1℃/0.1%RH
Power supply 9V~30V DC
Net weight 280g
Accessory Operation manual

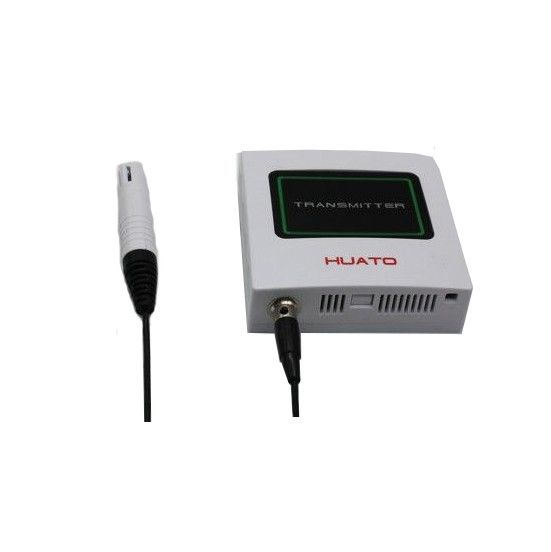

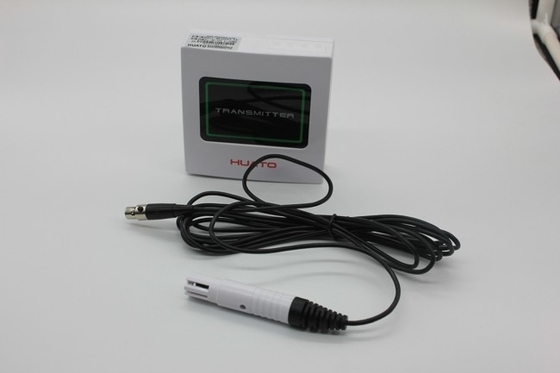

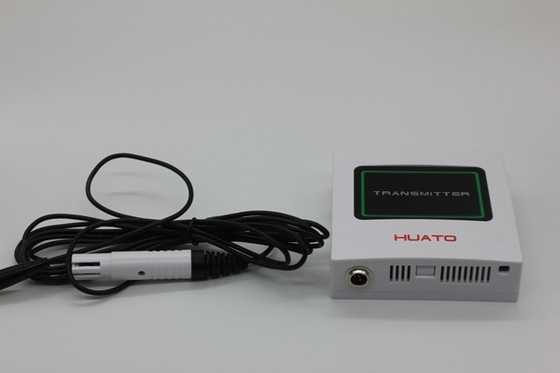

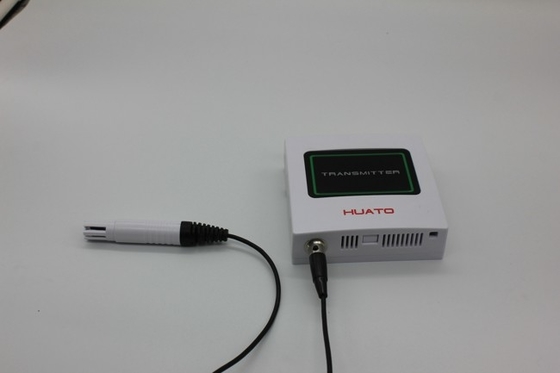

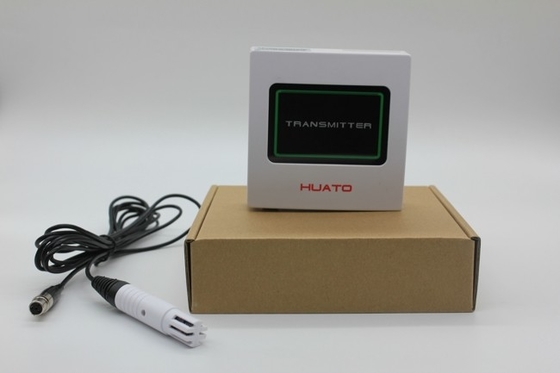

Product pictures


Modbus Output Temperature And Humidity Transmitter Instrument To Measure HumidityModbus Output Temperature And Humidity Transmitter Instrument To Measure HumidityModbus Output Temperature And Humidity Transmitter Instrument To Measure HumidityModbus Output Temperature And Humidity Transmitter Instrument To Measure HumidityModbus Output Temperature And Humidity Transmitter Instrument To Measure Humidity



Applications:

    HE200 series temperature humidity transmitter has been widely use in applications in following sectors : pharmacy, chean rooms,  industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .

Modbus Output Temperature And Humidity Transmitter Instrument To Measure HumidityModbus Output Temperature And Humidity Transmitter Instrument To Measure HumidityModbus Output Temperature And Humidity Transmitter Instrument To Measure Humidity
