|Brand Name:||HUATO||Model Number:||HE200V10|
|Voltage Output:||0~5V||Temperature Measuring:||0~50℃|
|Theory:||Temperature Humidity Transmitter||Material:||ABS|
|Place Of Origin:||Shenzhen ,China||Humidity Range:||0~100%RH|
|Temperature Accuracy:||±0.5℃||Humidity Accuracy:||±3%RH|

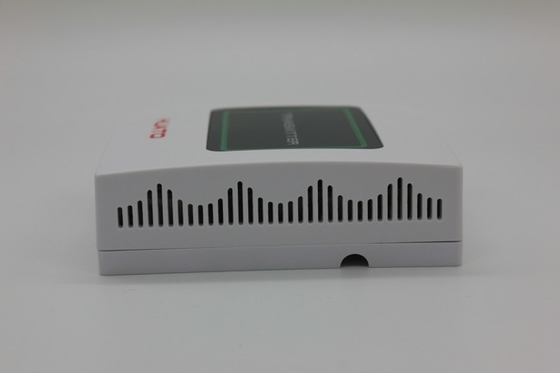

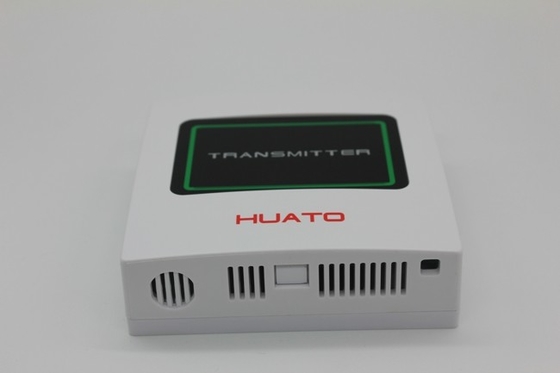

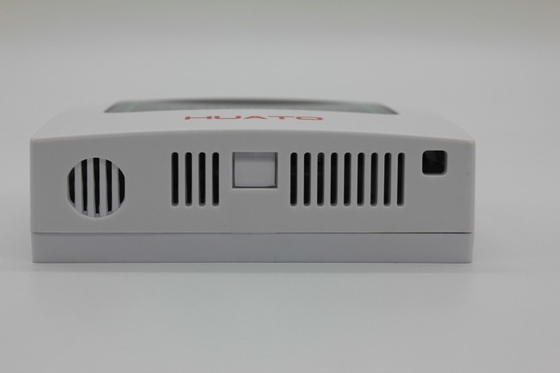

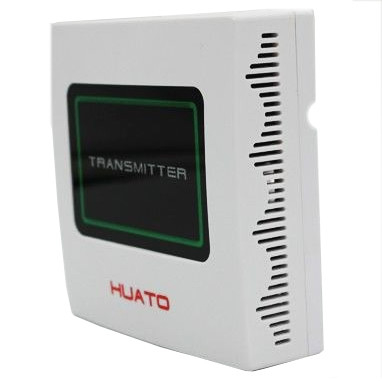

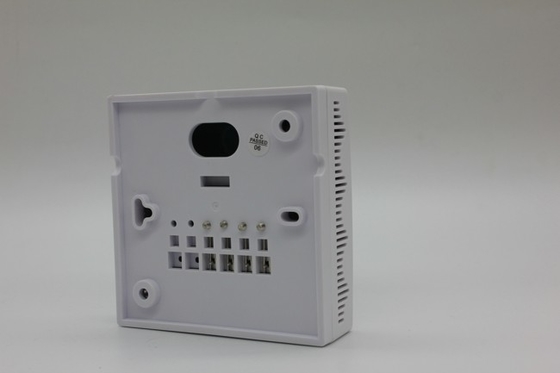

Industrial voltage Temperature Humidity Sensor 0~10V HE200V10 Transmitter
HE200V10 IS temperature, relative humidity transmitters was developed by HUATO, adopt imported sensors, components and low-power consumption SCM design, which assure the quality and stability. This series are industrial class sensor/transmitter , it can support Voltage output. It has unique design features to ensure that the heat generated by circuit board will not influence the measuring. They can be mounted on wall and enjoy wide measuring range and high accuracy. With this transmitter temperature and humidity signals can be out put by the means of 0~10V voltage . In addition, it has internal probe.
Adopt import components and high-performance SCM design.
Professional industrial design, avoid the test influence caused by circuit heat.
Enjoy various outputs, 4~20mA/0~5V/0~10V/RS485/Modbus output.
Enjoy patent technique, very easy to install and maintain.
Enjoy high accuracy. Economical and practical.
Product dimensions: 100*100*30mm(3.94"*3.94*1.28"inch)
LCD size: 60*40mm(2.36"*1.57"inch)
Models list and specifications :
|Sensor type||Internal||External with 3 meters cable||Internal||External with 3 meters cable|
|Wire mode||4lead terminals||4 lead terminals|
|Power supply||9V~30V DC|
HE200 series temperature humidity transmitter desiged for applications in following sectors : pharmacy, chean rooms, ventilation ducts, industrial and vivil sectors, crowded places , canteens, auditoria, gyms, high-density farms, greenhouse , ect .
