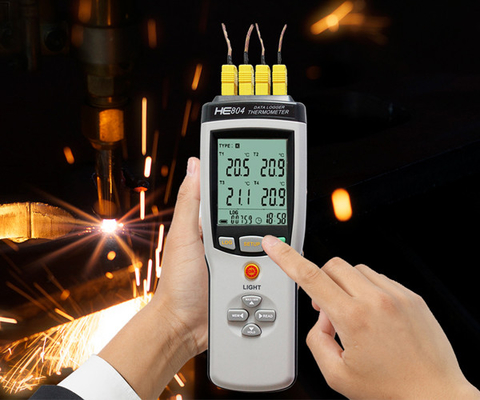

4 Channels Thermocouple Data Logger Support K J E T R S N B Type Record 36000 Reading Huato HE804

China 4 Channels Thermocouple Data Logger Support K J E T R S N B Type Record 36000 Reading Huato HE804 supplier
4 Channels Thermocouple Data Logger Support K J E T R S N B Type Record 36000 Reading Huato HE804 supplier 4 Channels Thermocouple Data Logger Support K J E T R S N B Type Record 36000 Reading Huato HE804 supplier

Large Image :  4 Channels Thermocouple Data Logger Support K J E T R S N B Type Record 36000 Reading Huato HE804

Product Details:

Place of Origin: China
Brand Name: HUATO
Certification: ISO19001 ,ISO14001, ISO 18001, CE
Model Number: HE804

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD94~USD180
Packaging Details: carton
Delivery Time: 2~10workdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal, wechat, alipay
Supply Ability: 4000pcs/month
Contact Now
Detailed Product Description
Material: Fireproof ABS Plastic Sensor Type: External Probe
Temperature Range: -200~+1800℃ Optional: Thermocouple Sensor Is Optional
Support Thermocouple Type: K J E T R S N B

4 channels thermocouple thermometer support K J E T R S N B type thermocouple record 36000 reading huato HE804



skype : huato.luo



Introduction :



HE804 4 channels thermocouple data logger developed, sale by HUATO, Which support 8 type thermocouple sensor ,



like K, J,  E, T, R, S, N, B type thermocouple. HE804device support measuring -200~+1800 ℃,manual record 88 reading



datas, automatic record 36000 readings, can export excel , PDF . BMP graph data sheet.





Features:



Automatic recording capacity : 36000 readings.



Manual Recording Capacity : 88 readings.



Check MAX MIN data.





Specification :



Model



HE804

Support Measurement Range



-200~+1800℃

Resolution



0.1℃

Temperature Accuracy



±1℃±0.5%F.S.

Automatic Recording



36000 readings

Manual Recording capacity



88 readings

Automatic Recording capacity



Non

Power supply



9V block battery

Dimensions



L162 x W95 x H35mm

Packing size



L305 * W240*H90mm

Standard Accessories



9V Block Battery, user manual
Catificate

CE, ISO

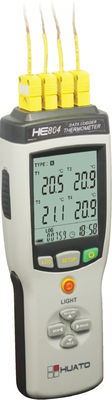

4 Channels Thermocouple Data Logger Support K J E T R S N B Type Record 36000 Reading Huato HE804



This symbol showing being the setup mode Count for auto-recording or manual-recording data
This symbol shows being the maximum or minimum data checking status This symbol shows being the manual-recoding data checking status
Sensor type symbol display area Symbol for clock
T1,T2,T3,T4 for channel 1, channel 2, channel 3 and channel 4 respectively Year/month-date/time alternate display area
Data symbol for channel 1, channel 2, channel 3 and channel 4 This symbol shows that instrument is being connected with PC
This symbol shows that manual-recording data can be deleted This symbol shows setting limits are being exceeded
This symbol shows that instrument is being connected with PC Temperature unit for channel 1, channel 2, channel 3 and channel 4
Battery status indication This symbol shows being the maximum and minimum data checking status
This symbol shows instrument is being the logging status (HE80x only) This symbol shows being the holding fixed measuring data status






Applications :



  Widely use  in industrial high or low temperature measurement.
