Fast Response Differential Pressure Manometer / Differential Pressure Data Logger

I'm Online Chat Now

Fast Response Differential Pressure Manometer / Differential Pressure Data Logger

China Fast Response Differential Pressure Manometer / Differential Pressure Data Logger supplier

Large Image :  Fast Response Differential Pressure Manometer / Differential Pressure Data Logger

Product Details:

Place of Origin: Mainland China
Brand Name: HUATO
Certification: ISO9001,ISO14001, ISO18001
Model Number: S150-DP-5

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: USD 180~300/PCS
Packaging Details: carton
Delivery Time: 5~7working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs/months
Contact Now
Detailed Product Description

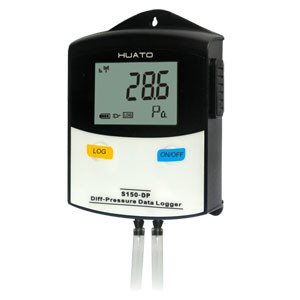

Name: Dynamic Pressure Differential Pressure Manometer Model: S150-DP-5
Measuring Range: -5000~+5000Pa Accuracy: ±2%FS

Filter Resistance use -5000~+5000Pa Static Differential Pressure Data logger





Introduction:



    S150-DP-5 differential pressure manometer can measure and record the air and incorrosive gases including positive and negative pressure(vacuum) as well as differential pressure, which is designed and developed by HUATO company. Adopt import original sensor, fast response , no ware, hysteresis and clearance. It will not change , evaporate and freeze. This kind of design can avoid moving, shaking and overpressure ability so that make sure the high accuracy.





Features:



Static pressure measurement .
Recording capacity:43,000
Log interval from 2 seconds to 24 hours.Start immediately,start delay and start timely can be chosen from settings.
Recording protection.Log stops when battery is not enough and data last forever till delete manually.
Fast response and high accuracy.Wall mounted,compact and elegant design.





Technical  Specification :



Model S150-DP-5
Measuring type Static Differential pressure
Measuring range -5000~+5000Pa
Accuracy ±2%F.S.
Record capacity 43000
Resolution 0.1Pa
Repeatability ±1‰
Operation range 0~50℃
Battery 3.6V lithium battery*2
Battery life More than 300 hours
Dimension 96mm * 69mm * 29mm
LCD size 40mm * 28mm
Net weight 280g
Accessory Software CD, USB cable,Operation manual and battery.











Fast Response Differential Pressure Manometer / Differential Pressure Data Logger



Applications:



   Widely applied in air conditioning system, clean room, filter resistance, flow testing of discharge duct, air speed , hydraulic system pressure and automatic value as well as health care equipment respiratory monitoring fileds etc.
