Portable Single PT100 External Sensor up to 100 degree 0.3 degree accuracy Temperature Data Logger

I'm Online Chat Now

Portable Single PT100 External Sensor up to 100 degree 0.3 degree accuracy Temperature Data Logger

China Portable Single PT100 External Sensor up to 100 degree 0.3 degree accuracy Temperature  Data Logger supplier
Portable Single PT100 External Sensor up to 100 degree 0.3 degree accuracy Temperature  Data Logger supplier Portable Single PT100 External Sensor up to 100 degree 0.3 degree accuracy Temperature  Data Logger supplier

Large Image :  Portable Single PT100 External Sensor up to 100 degree 0.3 degree accuracy Temperature Data Logger

Product Details:

Place of Origin: Mainland China
Brand Name: HUATO
Certification: CE,ISO9001,ISO14001, ISO18001
Model Number: S520-EPT

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: USD90~200/PCS
Packaging Details: carton
Delivery Time: 3~8 working days
Payment Terms: T/T, Western Union,paypal
Supply Ability: 4000PCS/months
Contact Now
Detailed Product Description
Model: S520-EPT Sensor Type: External Single PT100 Temperature Sensor
Material: Plastic Temperature Range: ±0.3℃
Application: High Temperature Environment
High Light:

temperature humidity monitor recorder

,

portable temperature data logger

Portable Single PT100 External Sensor up to 100 degree 0.3 degree accuracy Temperature Data Logger​



Introduction :

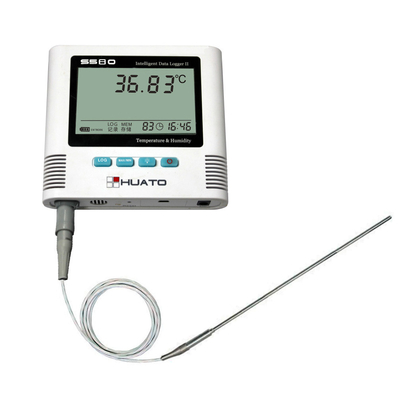

S520-EPT external alarm  hight accuracy temperature  data logger developed by HUATO company . This series logger featured with large LCD display, elegant appearance and hight precision, all the sensors are produced in USA, which assures accuracy and stability.

S500 series data logger build-in sound and light alarm function, that will alarm when exceed limit that users set up. In addition,different measuring range up to 200℃ with PT100 sensor.



Features:
Automatic Record function, mass storage function: 4,3000
Log interval : 2s to 24 hours
Large LCD display temperature , number of data stored as well as time simultaneously.

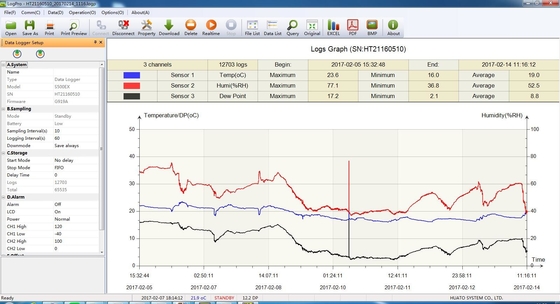

USB interface, download data to PC via USB cable.
Built-in sound & light alarm, when the data exceed the limit that user set up, device will alarm.
Easy to operate, can be placed on desk or mounted on wall.
MAX/MIN function key to show the maximum/minimum value
Deviation calibrate the instrument.
Automatic Record function, mass storage function:4,3000





PT100 Temperature Data Logger Model list
Model S500-EPT S500-DPT S520-EPT S520-DPT
Temperature Accuracy ±0.5℃ ±0.5℃ ±0.3℃ ±0.3℃
Temperature Measurement Range -100~+100℃ -100~+100℃ -100~+100℃ -100~+100℃
Sensor type Single external PT100 sensor with 2meters cable Dual external PT100 sensors with 2meters cable Single external PT100 sensor with 2meters cable Dual external PT100 sensors with 2meters cable
Sensor quantity 1 2 1 2
Channel 1 2 1 2
Resolution 0.1°C
Automatic Record Capacity 4,3000
Battery 9V Block Battery *1
Dimensions 135mm * 124mm * 35mm(5.31"*4.88"*1.37inch)
LCD size 97mm * 78mm(3.81"*1.37")
Weight 380g
Standard Accessories 9V Block Battery, user manual,USB cable, software, screw
Optional Accessories AC-DC adapter, printer,external sound & light alarm
Certificate CE,ISO





Portable Single PT100 External Sensor up to 100 degree 0.3 degree accuracy Temperature  Data Logger



Applications:



Widely applied in research field incubator ,electronics, food industry, medical industry ,environmental protection, refrigerator,warehouse,fridge,truck and laboratory, etc.
