Temperature Recorders Data Logger Gsm Modem , Sms Temperature Monitoring

Certification
Good quality Digital Thermometer Hygrometer for sales
Good quality Digital Thermometer Hygrometer for sales
I'm Online Chat Now

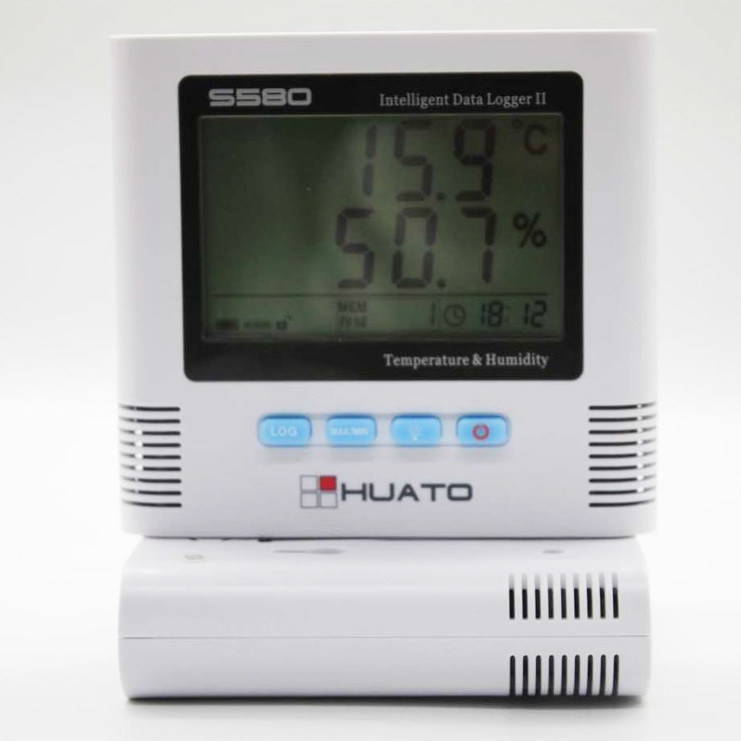

Temperature Recorders Data Logger Gsm Modem , Sms Temperature Monitoring

China Temperature Recorders Data Logger Gsm Modem , Sms Temperature Monitoring supplier
Temperature Recorders Data Logger Gsm Modem , Sms Temperature Monitoring supplier Temperature Recorders Data Logger Gsm Modem , Sms Temperature Monitoring supplier

Large Image :  Temperature Recorders Data Logger Gsm Modem , Sms Temperature Monitoring

Product Details:

Place of Origin: Made in China
Brand Name: Huato
Certification: CE
Model Number: S580-TH-GSM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc High Accuracy SMS Alarm Tempearture Humidity GSM Data Logger with Calibration Certificate HUATO S580-TH-GSM
Price: Negotiable
Packaging Details: Standard Carton Box
Delivery Time: 1 working day after payment received
Payment Terms: T/T, Western Union, Paypal, RMB
Supply Ability: 5000units per month
Contact Now
Detailed Product Description
Description: High Accuracy SMS Alarm Tempearture Humidity GSM Data Logger With Calibration Certificate HUATO S580-TH-GSM S580-TH-GSM Selling Point: GSM Alarm When Temperature Or Humidity Exceeds The Setting Limits
S580-TH-GSM Temperature Measurement Range: -20~+70℃ Humidity Measurement Range: 0~100%RH
Temperature Precision: ±0.2℃ Humidity Accuracy: ±2%RH
S580-TH-GSM Storage Capacity: 65000 Readings Sampling Interval: From 2s To 24hours
Accessories: Huato S580-TH-GSM +Battery+ Software And User Manual In CD+ Plastic Screw Bag+ External Sensor+ GSM Antena+ Adapter (Optional) + External LED&Sound Alarm (Optional) Warranty Period: 365 Days
Material: ABS Plastic For Industrial Usage Color Of Panel: Black
Packing Ways: Carton Box With Plastic Foam In It Sensor Type: Built-in Sensor
LCD Size: 97mm*78mm Dimension: 135mm*124mm*35mm
Interface: USB Weight: 380g
Display: LCD Display Frequency Range: 850 / 900 / 1800 / 1900mhz
Battery: 9v Block Battery Skype Id: Skype: Huato.Tina
Optional Accessories: Adapter Built-in Sensor: Imported From Switzerland Directly

High Accuracy SMS Alarm Tempearture Humidity GSM Data Logger with Calibration Certificate HUATO S580-TH-GSM

Introduction

S580-TH-GSM data logger was designed to monitor temperature & humidity with capability to send alarming message to phone numbers set up by customers when temperature data is out of pre-definded limits; and will send good news message when data is back within pre-defined limits. In addition,customer can get real-time data message by calling phone number in the logger.

This series use original sensor import from America or Switzerland, has high accuracy and stable. The user can also calibration the instrument by deviation.





Working princeple

1) If user defined maxi/mini temperature values are exceeded, our device will send SMS to USER’S Mobile phone. We list the GSM alarm example picture as follows:


MobilePhone Tex example as follows:

Temperature Recorders Data Logger Gsm Modem , Sms Temperature Monitoring




2) When the Temperature returned to normal range ,our device will sent the GSM to user again.

Example as follow:

Temperature Recorders Data Logger Gsm Modem , Sms Temperature Monitoring





3). User can user can keep track of Real-time temperature

When the user call to device and device will sent SMS to tell user what the temperature and humidity at anytime.

Temperature Recorders Data Logger Gsm Modem , Sms Temperature Monitoring



Specifications

Model Accuracy Measuring range Sensor type Capacity
S500-TH-GSM ±0.5°C/±5%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S500-EX-GSM ±0.5°C/±3%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S520-TH-GSM ±0.3°C/±3%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S520-EX-GSM ±0.3°C/±3%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S580-TH-GSM ±0.2°C/±2%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S580-EX-GSM ±0.2°C/±2%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S500-ET-GSM ±0.5°C -40~85°C Single Temperature external sensor with 3 meters 43000
S520-DT-GSM ±0.5°C -40~85°C Dual Temperature external sensor with 3 meters 43000
S520-ET-GSM ±0.3°C -40~85C Single Temperature external sensor with 3 meters 43000
S520-DT-GSM ±0.3°C -40~85°C Dual Temperature external sensor with 3 meters 43000

Analyzed Software interface

software-Jpg

Applications

It has been widely applied in agricultural research fields ,electronics, food industry, medical industry ,environmental protection and laboratory, etc.

Standard accessories

Battery+Screw+User manual+LogPro Software+USB cable

Optional accessories

AC-DC adapter+External alarm

Temperature Recorders Data Logger Gsm Modem , Sms Temperature Monitoring
