Pharmaceutical Gsm Temperature Sensor , Sms Data Logger With Gsm Module

Certification
Good quality Digital Thermometer Hygrometer for sales
Good quality Digital Thermometer Hygrometer for sales
I'm Online Chat Now

Pharmaceutical Gsm Temperature Sensor , Sms Data Logger With Gsm Module

China Pharmaceutical Gsm Temperature Sensor , Sms Data Logger With Gsm Module supplier
Pharmaceutical Gsm Temperature Sensor , Sms Data Logger With Gsm Module supplier Pharmaceutical Gsm Temperature Sensor , Sms Data Logger With Gsm Module supplier Pharmaceutical Gsm Temperature Sensor , Sms Data Logger With Gsm Module supplier Pharmaceutical Gsm Temperature Sensor , Sms Data Logger With Gsm Module supplier

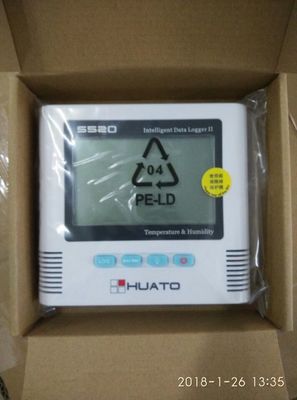

Large Image :  Pharmaceutical Gsm Temperature Sensor , Sms Data Logger With Gsm Module

Product Details:

Place of Origin: Made in China
Brand Name: Huato
Certification: CE
Model Number: S520-TH-GSM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc Pharmaceutical Usage SMS Alarm Tempearture Humidity GSM Data Logger with GSM 850 900 1800 1900mhz HUATO S520-TH-GSM
Price: Negotiable
Packaging Details: Standard Carton Box
Delivery Time: 1 working day after payment received
Payment Terms: T/T, Western Union, Paypal, RMB
Supply Ability: 5000units per month
Contact Now
Detailed Product Description
Description: Pharmaceutical Usage SMS Alarm Tempearture Humidity GSM Data Logger With GSM 850 900 1800 1900mhz HUATO S520-TH-GSM S520-TH-GSM Selling Point: GSM Alarm When Temperature Or Humidity Exceeds The Setting Limits
Temperature Measurement Range: -20~+70℃ Humidity Measurement Range: 0~100%RH
Temperature Accuracy: ±0.3℃ Humidity Accuracy: ±3%RH
Storage Capacity: 65000 Readings Sampling Interval: From 2s To 24hours
Accessories: Huato S520-TH-GSM +Battery+ Software And User Manual In CD+ Plastic Screw Bag+ External Sensor+ GSM Antena+ Adapter (Optional) + External LED&Sound Alarm (Optional) Warranty Period: 365 Days
Material: ABS Plastic For Industrial Usage Color Of Panel: Black
Packing Ways: Carton Box With Plastic Foam In It Sensor Type: Built-in Sensor
LCD Size: 97mm*78mm Dimension: 135mm*124mm*35mm
Interface: USB

Pharmaceutical Usage SMS Alarm Tempearture Humidity GSM Data Logger with GSM 850 900 1800 1900mhz HUATO S520-TH-GSM

Introduction

S500 GSM data logger was designed to monitor temperature & humidity with capability to send alarming message to phone numbers set up by customers when temperature data is out of pre-definded limits; and will send good news message when data is back within pre-defined limits. In addition,customer can get real-time data message by calling phone number in the logger.

This series use original sensor import from America or Switzerland, has high accuracy and stable. The user can also calibration the instrument by deviation.





Working princeple

1) If user defined maxi/mini temperature values are exceeded, our device will send SMS to USER’S Mobile phone. We list the GSM alarm example picture as follows:

MobilePhone Tex example as follows:

Pharmaceutical Gsm Temperature Sensor , Sms Data Logger With Gsm Module


2) When the Temperature returned to normal range ,our device will sent the GSM to user again.

Example as follow:

Pharmaceutical Gsm Temperature Sensor , Sms Data Logger With Gsm Module


3). User can user can keep track of Real-time temperature

When the user call to device and device will sent SMS to tell user what the temperature and humidity at anytime.

Pharmaceutical Gsm Temperature Sensor , Sms Data Logger With Gsm Module



Features

Measure temperature and humidity with external sensor.

1) Capacity 43,000-86,000 data memory.

2) Large LCD display to show logging information easily.

3) GSM,sound light Alarm if user-defined maximum/minimum values are exceeded.

4) Analysis software used to view graph, specific data and analysis for logging data.

5) Log interval: 2s-24h .

6) Backlight display shows more clearly.

7) External power or battery supply.Display show the battery indicator.



Specifications

ModelAccuracyMeasuring rangeSensor typeCapacity
S500-TH-GSM±0.5°C/±5%RH-20~70°C 0~100%RHTemperature + humidity,internal43000
S500-EX-GSM±0.5°C/±3%RH-40~85°C 0~100%RHTemperature + humidity,external sensor with 3 meters43000
S520-TH-GSM±0.3°C/±3%RH-20~70°C 0~100%RHTemperature + humidity,internal43000
S520-EX-GSM±0.3°C/±3%RH-40~85°C 0~100%RHTemperature + humidity,external sensor with 3 meters43000
S580-TH-GSM±0.2°C/±2%RH-20~70°C 0~100%RHTemperature + humidity,internal43000
S580-EX-GSM±0.2°C/±2%RH-40~85°C 0~100%RHTemperature + humidity,external sensor with 3 meters43000
S500-ET-GSM±0.5°C-40~85°CSingle Temperature external sensor with 3 meters43000
S520-DT-GSM±0.5°C-40~85°CDual Temperature external sensor with 3 meters43000
S520-ET-GSM±0.3°C-40~85CSingle Temperature external sensor with 3 meters43000
S520-DT-GSM±0.3°C-40~85°CDual Temperature external sensor with 3 meters43000

Analyzed Software interface

software-Jpg

Applications

It has been widely applied in agricultural research fields ,electronics, food industry, medical industry ,environmental protection and laboratory, etc.

Standard accessories

Battery+Screw+User manual+LogPro Software+USB cable

Optional accessories

AC-DC adapter+External alarm

Pharmaceutical Gsm Temperature Sensor , Sms Data Logger With Gsm Module
