High Precision Gsm Data Logger Battery Powered GSM 850 900 1800 1900mhz

Name: High Precision Gsm Data Logger Battery Powered GSM 850 900 1800 1900mhz
Brand: Huato
SKU: S520-TH-GSM
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (175 reviews)

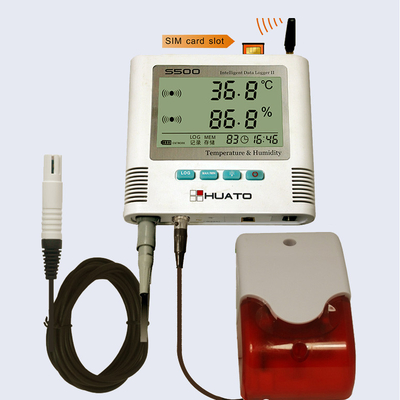

: Large Image : High Precision Gsm Data Logger Battery Powered GSM 850 900 1800 1900mhz

Product Details:

Place of Origin:	Made in China
Brand Name:	Huato
Certification:	CE
Model Number:	S520-TH-GSM

Payment & Shipping Terms:

Minimum Order Quantity:	1pc High Precision SMS Alarm Tempearture Humidity GSM Data Logger with GSM 850 900 1800 1900mhz HUATO S520-TH-GSM
Price:	Negotiable
Packaging Details:	Standard Carton Box
Delivery Time:	1 working day after payment received
Payment Terms:	T/T, Western Union, Paypal, RMB
Supply Ability:	5000units per month

Contact Now

Detailed Product Description

Description:	High Precision SMS Alarm Tempearture Humidity GSM Data Logger With GSM 850 900 1800 1900mhz HUATO S520-TH-GSM	S520-TH-GSM Selling Point:	GSM Alarm When Temperature Or Humidity Exceeds The Setting Limits
Temperature Measurement Range:	-20~+70℃	Humidity Measurement Range:	0~100%RH
Temperature Accuracy:	±0.3℃	Humidity Accuracy:	±3%RH
Battery Type:	9v Block Battery	Storage Capacity:	65000 Readings
Accessories:	Huato S520-TH-GSM +Battery+ Software And User Manual In CD+ Plastic Screw Bag+ External Sensor+ GSM Antena+ Adapter (Optional) + External LED&Sound Alarm (Optional)	Sensor Type:	Built-in Sensor
High Light:	gsm temperature monitor , sms data logger

High Precision SMS Alarm Tempearture Humidity GSM Data Logger GSM 850 900 1800 1900mhz HUATO S520-TH-GSM

Introduction

S500 GSM data logger was designed to monitor temperature & humidity with capability to send alarming message to phone numbers set up by customers when temperature data is out of pre-definded limits; and will send good news message when data is back within pre-defined limits. In addition,customer can get real-time data message by calling phone number in the logger.

This series use original sensor import from America or Switzerland, has high accuracy and stable. The user can also calibration the instrument by deviation.

Working princeple

1) If user defined maxi/mini temperature values are exceeded, our device will send SMS to USER’S Mobile phone. We list the GSM alarm example picture as follows:

MobilePhone Tex example as follows:

High Precision Gsm Data Logger Battery Powered GSM 850 900 1800 1900mhz

2) When the Temperature returned to normal range ,our device will sent the GSM to user again.

Example as follow:

High Precision Gsm Data Logger Battery Powered GSM 850 900 1800 1900mhz

3). User can user can keep track of Real-time temperature

When the user call to device and device will sent SMS to tell user what the temperature and humidity at anytime.

High Precision Gsm Data Logger Battery Powered GSM 850 900 1800 1900mhz

Features

Measure temperature and humidity with external sensor.

1) Capacity 43,000-86,000 data memory.

2) Large LCD display to show logging information easily.

3) GSM,sound light Alarm if user-defined maximum/minimum values are exceeded.

4) Analysis software used to view graph, specific data and analysis for logging data.

5) Log interval: 2s-24h .

6) Backlight display shows more clearly.

7) External power or battery supply.Display show the battery indicator.

Specifications

Model	Accuracy	Measuring range	Sensor type	Capacity
S500-TH-GSM	±0.5°C/±5%RH	-20~70°C 0~100%RH	Temperature + humidity,internal	43000
S500-EX-GSM	±0.5°C/±3%RH	-40~85°C 0~100%RH	Temperature + humidity,external sensor with 3 meters	43000
S520-TH-GSM	±0.3°C/±3%RH	-20~70°C 0~100%RH	Temperature + humidity,internal	43000
S520-EX-GSM	±0.3°C/±3%RH	-40~85°C 0~100%RH	Temperature + humidity,external sensor with 3 meters	43000
S580-TH-GSM	±0.2°C/±2%RH	-20~70°C 0~100%RH	Temperature + humidity,internal	43000
S580-EX-GSM	±0.2°C/±2%RH	-40~85°C 0~100%RH	Temperature + humidity,external sensor with 3 meters	43000
S500-ET-GSM	±0.5°C	-40~85°C	Single Temperature external sensor with 3 meters	43000
S520-DT-GSM	±0.5°C	-40~85°C	Dual Temperature external sensor with 3 meters	43000
S520-ET-GSM	±0.3°C	-40~85C	Single Temperature external sensor with 3 meters	43000
S520-DT-GSM	±0.3°C	-40~85°C	Dual Temperature external sensor with 3 meters	43000

Analyzed Software interface

Applications

It has been widely applied in agricultural research fields ,electronics, food industry, medical industry ,environmental protection and laboratory, etc.
