65000 Readings GSM Data Logger 2g With Built - In Temperature Humidity Sensor

Certification
Good quality Digital Thermometer Hygrometer for sales
Good quality Digital Thermometer Hygrometer for sales
I'm Online Chat Now

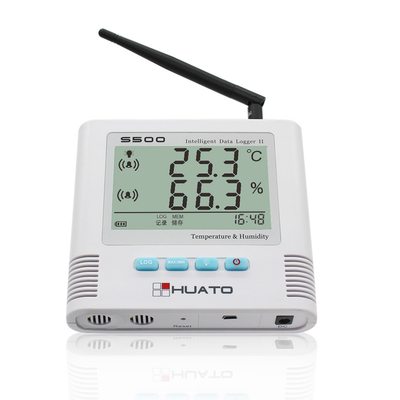

65000 Readings GSM Data Logger 2g With Built - In Temperature Humidity Sensor

China 65000 Readings GSM Data Logger 2g With Built - In Temperature Humidity Sensor supplier
65000 Readings GSM Data Logger 2g With Built - In Temperature Humidity Sensor supplier 65000 Readings GSM Data Logger 2g With Built - In Temperature Humidity Sensor supplier 65000 Readings GSM Data Logger 2g With Built - In Temperature Humidity Sensor supplier

Large Image :  65000 Readings GSM Data Logger 2g With Built - In Temperature Humidity Sensor

Product Details:

Place of Origin: Made in China
Brand Name: Huato
Certification: CE
Model Number: S500-TH-GSM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc Remote SMS Alarm Tempearture Humidity GSM Data Logger 2g with Built-In Sensor HUATO S500-TH-GSM
Price: Negotiable
Packaging Details: Standard Carton Box
Delivery Time: 1 working day after payment received
Payment Terms: T/T, Western Union, Paypal, RMB
Supply Ability: 5000units per month
Contact Now
Detailed Product Description
Description: Remote SMS Alarm Tempearture Humidity GSM Data Logger 2g With Built-In Sensor HUATO S500-TH-GSM Selling Point: GSM Alarm When Temperature Or Humidity Exceeds The Setting Limits
Temperature Range: -20~+70℃ Humidity Range: 0~100%RH
Temperature Precision: ±0.5℃ Humidity Precision: ±5%RH
Sensor Type: Built-In Temperature Humidity Sensor Battery Type: 9v Block Battery
Recording Capacity: 65000 Readings Sampling Interval: From 2s Tio 24hours

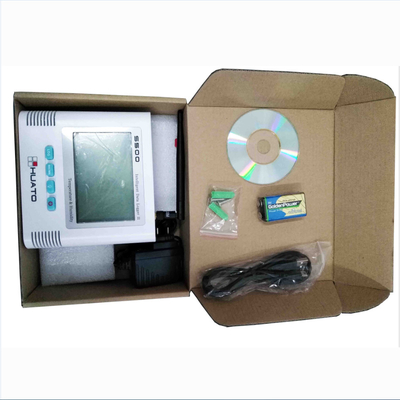

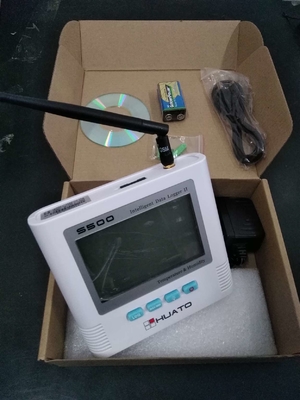

Accessories: Huato S500-TH-GSM +Battery+ Software And User Manual In CD+ Plastic Screw Bag+ External Sensor+ GSM Antena+ Adapter (Optional) + External LED&Sound Alarm (Optional) Email Info: Sale01@huato.com
Lead Time: 365 Days Material: ABS Plastic For Industrial Usage

Remote SMS Alarm Tempearture Humidity GSM Data Logger 2g with Built-In Sensor HUATO S500-TH-GSM

Introduction

S500 GSM data logger was designed to monitor temperature & humidity with capability to send alarming message to phone numbers set up by customers when temperature data is out of pre-definded limits; and will send good news message when data is back within pre-defined limits. In addition,customer can get real-time data message by calling phone number in the logger.

This series use original sensor import from America or Switzerland, has high accuracy and stable. The user can also calibration the instrument by deviation.





Working princeple

1) If user defined maxi/mini temperature values are exceeded, our device will send SMS to USER’S Mobile phone. We list the GSM alarm example picture as follows:


MobilePhone Tex example as follows:

65000 Readings GSM Data Logger 2g With Built - In Temperature Humidity Sensor




2) When the Temperature returned to normal range ,our device will sent the GSM to user again.

Example as follow:

65000 Readings GSM Data Logger 2g With Built - In Temperature Humidity Sensor





3). User can user can keep track of Real-time temperature

When the user call to device and device will sent SMS to tell user what the temperature and humidity at anytime.

65000 Readings GSM Data Logger 2g With Built - In Temperature Humidity Sensor






Features

Measure temperature and humidity with external sensor.

1) Capacity 43,000-86,000 data memory.

2) Large LCD display to show logging information easily.

3) GSM,sound light Alarm if user-defined maximum/minimum values are exceeded.

4) Analysis software used to view graph, specific data and analysis for logging data.

5) Log interval: 2s-24h .

6) Backlight display shows more clearly.

7) External power or battery supply.Display show the battery indicator.



Specifications

Model Accuracy Measuring range Sensor type Capacity
S500-TH-GSM ±0.5°C/±5%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S500-EX-GSM ±0.5°C/±3%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S520-TH-GSM ±0.3°C/±3%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S520-EX-GSM ±0.3°C/±3%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S580-TH-GSM ±0.2°C/±2%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S580-EX-GSM ±0.2°C/±2%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S500-ET-GSM ±0.5°C -40~85°C Single Temperature external sensor with 3 meters 43000
S520-DT-GSM ±0.5°C -40~85°C Dual Temperature external sensor with 3 meters 43000
S520-ET-GSM ±0.3°C -40~85C Single Temperature external sensor with 3 meters 43000
S520-DT-GSM ±0.3°C -40~85°C Dual Temperature external sensor with 3 meters 43000

Analyzed Software interface

software-Jpg

Applications

It has been widely applied in agricultural research fields ,electronics, food industry, medical industry ,environmental protection and laboratory, etc.

Standard accessories

Battery+Screw+User manual+LogPro Software+USB cable

Optional accessories

AC-DC adapter+External alarm



FAQ

@How to order?

1. Contact us on email, skype, kindly tell the model, quantity and your requirements, relative info will be provided by then.

2. If everything ok, pi will be sent.

3. Order will be arranged upon receipt of your payment, will let you know the producing process meanwhile.

4. Order be shipped out with tracking no. offered.

5. We will help tracking your order until it be delivered safely.



@What's the delivery time?

From 1 to 30 days.



@How about the warranty period?

If something wrong with our device, it can always be returned back to our factory for fix, 12 months for free under the condition of machine itself's problem.



@How do i know whether you've shipped my order or not?

Tracking no. will be offered as soon as your order be shipped out, before that, our sales will be there to check the production process and packaging status, will photo you the done order and let you know when the forwarder picked it up.



@Why should i choose your company?

1.alibaba golden supplier for 4+ years.

2.factory, warmly welcome to visit our factory.

3.before shipping, all data loggers will be tested by machine for hours, sometimes,up to days to make sure no problems with the instruments, also got a seperate team to examine whether there's any scratch on the lcd, whether covered all the accessories needed, all the accessories are the right ones etc.

4.all emails and msn will be respond within 1 hour

5.always focus on helping clients fix the problem instead of dodging





Contact us

If any questions regarding to our GSM Data Logger, please do not hesitate to send me inquiry or contact us through skype (Huato.Tina) directly.
