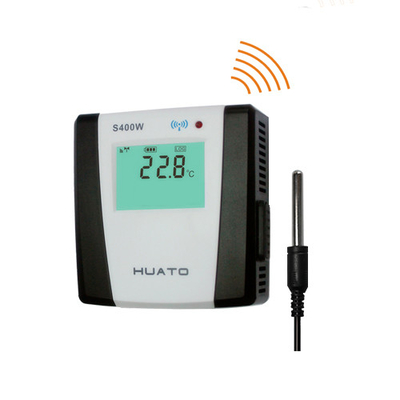

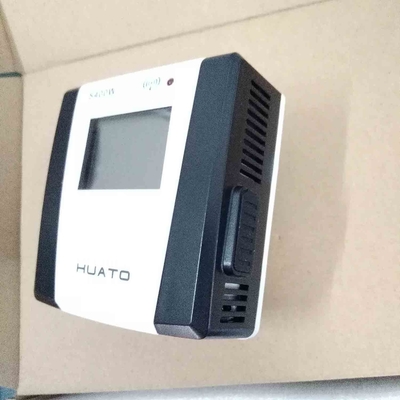

Real Time Monitoring System Zigbee Data Logger With Single External Probe Sensor

Certification
Good quality Digital Thermometer Hygrometer for sales
Good quality Digital Thermometer Hygrometer for sales
I'm Online Chat Now

Real Time Monitoring System Zigbee Data Logger With Single External Probe Sensor

China Real Time Monitoring System Zigbee Data Logger With Single External Probe Sensor supplier
Real Time Monitoring System Zigbee Data Logger With Single External Probe Sensor supplier Real Time Monitoring System Zigbee Data Logger With Single External Probe Sensor supplier

Large Image :  Real Time Monitoring System Zigbee Data Logger With Single External Probe Sensor

Product Details:

Place of Origin: CHINA
Brand Name: HUATO
Certification: ISO9001,ISO14001,ISO18001 CE Rohs
Model Number: S400W-ET

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD50- 200 PER SET
Packaging Details: each in a box, then into a standard carton
Payment Terms: T/T, Western Union,paypal
Supply Ability: 6000pcs/week
Contact Now
Detailed Product Description
Temperature Range: -40℃·85℃ Temperature Acuuracy: ±0.5℃
Power: Battery / DC Adapter Sensor: Single External Probe
Records: Up To 8192 Records Alarm: Bulti-in Alarm
Wireless: 2.4G Wireless Product Name: Temperature Humidity Logger Wireless

Single external probe temperature meter and real time monitoring system zigbee data logger



Introduction:



This is a wireless temperature humidity monitoring system which combine with S400W-ET measuring instruments and data receiver station HE2400, and your monitor computer .



S400W-ET devices acquire the data of temperature and humidity then transimission data via zigbee wirelessly.

use together with a HE2400 receiver station, which receive the data from the S400W wirelessly and tranfer to monitor computer by RJ45 net wired.



This is a real time monitoring system solution and data logger for temperature and humidity.

Data transimission by Zigbee wireless, which is more stable and Anti-interference





Features:



1 Not as the traditional item, the wireless temperature and humidity recorder can meet the fast working speed.
  The most important thing is that can acquire remote real-time monitoring in 24 hours of unattended environment.
  Just put a receiver in the office, through the zigbee 2.4G wireless network and monitoring software in PC,

2 You can easily sit in the office to see and check the changes of temperature and humidity in each environment clearly,

3 Not only real-time monitoring, also can query history data,

4 When the temperature and humidity data exceed the MAX/MIN limit, Its automatic alarm .



Specifications:

Model S400W-ET
Temperature Accuracy ±0.5℃
Temperature Measurement Range -40~+85℃
Humidity Range 0~100%RH
Sensor type EXternal temperaute sensor
Resolution  0.1°C / 0.1%RH
Automatic Record Capacity  8192 records
Power 1.5V AA battery*4 / DC9V - 12V adapter
Logging rate 2s to 24 hours
Dimensions 90mm * 87mm * 44mm
Accessories Battery, user manual, solftware



Applications:



Widely applied in air conditioning system, clean room, filter resistance, flow testing of discharge duct, air speed ,

hydraulic system pressure and automatic value as well as health care equipment respiratory monitoring fileds etc.



After sale service:



Our working teams and sales teams can guarantee a fast and high efficiently after-sale service of our product sold to everywhere of the global.

We have stock for most of our product in major coorperation point worldwidely,which can shorten the supply time largely.So if have any questions,just contact us any time at your convenice!
