Hospital Gsm Temperature Logger / Data Logger With Gsm Module 135mm * 124mm * 35mm

Certification
Good quality Digital Thermometer Hygrometer for sales
Good quality Digital Thermometer Hygrometer for sales
I'm Online Chat Now

Hospital Gsm Temperature Logger / Data Logger With Gsm Module 135mm * 124mm * 35mm

China Hospital Gsm Temperature Logger / Data Logger With Gsm Module 135mm * 124mm * 35mm supplier

Large Image :  Hospital Gsm Temperature Logger / Data Logger With Gsm Module 135mm * 124mm * 35mm

Product Details:

Place of Origin: Made in China
Brand Name: Huato
Certification: CE
Model Number: S520-DT-GSM

Payment & Shipping Terms:

Minimum Order Quantity: 1uint Hospital 2℃ Freezer Temperature Monitoring GSM Data Logger With Printing Function Huato S520-DT-GSM
Price: negotiable
Packaging Details: Standard Carton Box
Delivery Time: 1 working day
Payment Terms: T/T, Western Union. paypal, RMB
Supply Ability: 5000units per month
Contact Now
Detailed Product Description
Model Name: S520-DT-GSM Temperature Precision: ±0.3℃
Temperature Range: -40~+85℃ Application: Refrigerator + Freezer + Laboratory + Cold Truck + Cold Room + Warehouse
Reading Capacity: 65000 Readings Resolution: 0.1°C
Battery: 9V Block Battery *1 Description: Hospital 2℃ Freezer Temperature Monitoring GSM Data Logger With Printing Function Huato S520-DT-GSM

Hospital 2℃ Freezer Temperature Monitoring GSM Data Logger With Printing Function Huato S520-DT-GSM





1. Introduction



HUATO Digital GSM alarm temperature and humidity logger is widely used in the medical industry, electronic industry, food industry, the transport industry, the meteorological industry, textile industry, HVAC refrigeration, file management, agricultural research, biochemistry lab as well as hospitality industry and food and beverage business.We believe HUATO instruments and meters can satisfy your various requirements perfectly.



2. Working princeple



1) If user defined maxi/mini temperature values are exceeded, our device will send SMS to USER’S Mobile phone. We list the GSM alarm example picture as follows:



Hospital Gsm Temperature Logger / Data Logger With Gsm Module 135mm * 124mm * 35mm





3.Features



Measure temperature and humidity with external sensor.



1) Capacity 43,000-86,000 data memory.



2) Large LCD display to show logging information easily.



3) GSM,sound light Alarm if user-defined maximum/minimum values are exceeded.



4) Analysis software used to view graph, specific data and analysis for logging data.



5) Log interval: 2s-24h .



6) Backlight display shows more clearly.



7) External power or battery supply.Display show the battery indicator.







4. Production data sheet





Model Accuracy Measuring range Sensor type Capacity
S500-TH-GSM ±0.5°C/±5%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S500-EX-GSM ±0.5°C/±3%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S520-TH-GSM ±0.3°C/±3%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S520-EX-GSM ±0.3°C/±3%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S580-TH-GSM ±0.2°C/±2%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S580-EX-GSM ±0.2°C/±2%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S500-ET-GSM ±0.5°C -40~85°C Single Temperature external sensor with 3 meters 43000
S520-DT-GSM ±0.5°C -40~85°C Dual Temperature external sensor with 3 meters 43000
S520-ET-GSM ±0.3°C -40~85C Single Temperature external sensor with 3 meters 43000
S520-DT-GSM ±0.3°C -40~85°C Dual Temperature external sensor with 3 meters 43000







5. Technical Parameters




Resolution Temperature: ±0.1C, humidity: ±0.1%RH
Powe supply 9V block battery
Display Large lcd display
Dimension 135* 124 *35mm (5.31 *4.88*1.37 inch)
Lcd size 97*78mm (3.81*1.37 inch)
Weight 330g
Accessories

Toanalyzer software CD, USB connection cable, calibration certificate,

Warranty card and gifr box with carrying case.

Interface USB(U)





6. Production picture

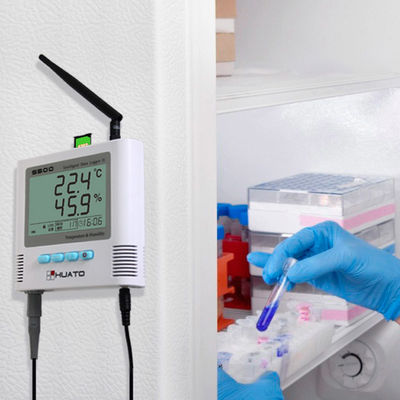

Hospital Gsm Temperature Logger / Data Logger With Gsm Module 135mm * 124mm * 35mm
