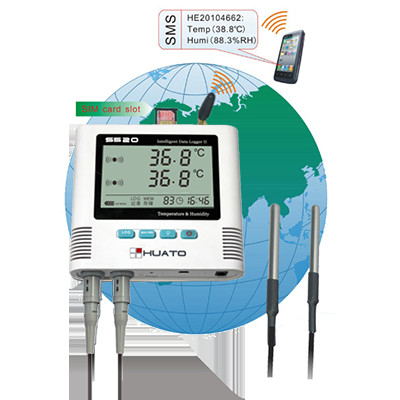

Portable Temperature Data Logger With Gsm Large LCD Display Easy Operate

: Large Image : Portable Temperature Data Logger With Gsm Large LCD Display Easy Operate

Product Details:

Place of Origin:	Made in China
Brand Name:	Huato
Certification:	CE
Model Number:	S500-DT-GSM

Payment & Shipping Terms:

Minimum Order Quantity:	1uint SMS Alarm Temperature Monitoring GSM Data Logger with Printer function for Cold Van Huato S500-DT-GSM
Price:	Negotiable
Packaging Details:	Standard Carton Box
Delivery Time:	1 working day
Payment Terms:	T/T, Western Union, Paypal, RMB
Supply Ability:	5000units per month

Contact Now

Detailed Product Description

Temperature Range:	-40~+85℃	Temperature Accuracy:	±0.5℃
Sensor Type:	Single External With 3 Meters Cable	Sensor Quantity:	1
Description:	SMS Alarm Temperature Monitoring GSM Data Logger With Printer Function For Cold Van Huato S500-DT-GSM
High Light:	gsm temperature monitor , sms data logger

SMS Alarm Temperature Monitoring GSM Data Logger with Printer function for Cold Van Huato S500-DT-GSM

Introduction

S500-DT- GSM data logger was designed to monitor temperature with capability to send alarming message to phone numbers set up by customers when temperature data is out of pre-definded limits; and will send good news message when data is back within pre-defined limits. In addition,customer can get real-time data message by calling phone number in the logger.

This series use original sensor import from America or Switzerland, has high accuracy and stable. The user can also calibration the instrument by deviation.

Features:

Message alarm function : if the data exceed the limit that user set up, deivce will send alarm message.
Frequency range :GSM850/900/1800/1900MHz
Built-in sound & light alarm function: when the data exceed the limit that user set up, device will buzzer and light alarm.
Get real time data by dialing the phone number that user put in the logger.
Large LCD display temperature , number of data stored as well as time simultaneously.
Easy to operate,USB interface, download data to PC via USB cable.
MAX/MIN function key to show the maximum/minimum value

S500-ET-GSM
External single sensor
Message content

Specifications

Model list
Model	S500-ET-GSM	S500-DT-GSM	S520-ET-GSM	S520-DT-GSM
Temperature Accuracy	±0.5℃		±0.3℃
Temperature Measurement Range	-40~+85℃
Sensor type	Single external with 3 meters cable	Dual external with 3 meters cable	Single external with 3 meters cable	Dual external with 3 meters cable
Sensor quantity	1	2	1	2
Channel	1	2	1	2
Resolution	0.1°C
Automatic Record Capacity	6,5000
Log interval	2s~24h
Battery	9V Block Battery *1
Weight	380g
Dimensions	135mm * 124mm * 35mm(5.31"4.88"1.37inch)
LCD size	97mm * 78mm(3.81"*1.37")
Standard Accessories	9V Block Battery, user manual,USB cable, software, screw
Optional Accessories	AC-DC adapter,external sound & light alarm
Catificate	CE, ISO

Analyzed Software interface

Applications

It has been widely applied in agricultural research fields ,electronics, food industry, medical industry ,environmental protection and laboratory, etc.
