High Accuracy Refrigerator Temperature Alarm Aps With 9V Block Battery *1

China High Accuracy Refrigerator Temperature Alarm Aps With 9V Block Battery *1 supplier
High Accuracy Refrigerator Temperature Alarm Aps With 9V Block Battery *1 supplier High Accuracy Refrigerator Temperature Alarm Aps With 9V Block Battery *1 supplier

Large Image :  High Accuracy Refrigerator Temperature Alarm Aps With 9V Block Battery *1

Product Details:

Place of Origin: Made in China
Brand Name: Huato
Certification: CE
Model Number: S580-ET-GSM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc High Accuracy Refrigerator Temperature Monitoring GSM Data Logger With Printing Function Huato S580-ET-GSM
Price: negotiable
Packaging Details: Standard Carton Box
Delivery Time: 1 working day
Payment Terms: T/T, Western Union. paypal, RMB
Supply Ability: 5000units per month
Contact Now
Detailed Product Description
Description: High Accuracy Refrigerator Temperature Monitoring GSM Data Logger With Printing Function Huato S580-ET-GSM Application: Refrigerator + Freezer + Laboratory + Cold Truck + Cold Room + Warehouse
Temperature Precision: ±0.2℃ Temperature Range: -40~+85℃
Weight: 380g Battery: 9V Block Battery *1

High Accuracy Refrigerator Temperature Monitoring GSM Data Logger With Printing Function Huato S580-ET-GSM





1. Introduction



HUATO Digital GSM alarm temperature and humidity logger is widely used in the medical industry, electronic industry, food industry, the transport industry, the meteorological industry, textile industry, HVAC refrigeration, file management, agricultural research, biochemistry lab as well as hospitality industry and food and beverage business.We believe HUATO instruments and meters can satisfy your various requirements perfectly.





2. Working princeple



1) If user defined maxi/mini temperature values are exceeded, our device will send SMS to USER’S Mobile phone. We list the GSM alarm example picture as follows:



High Accuracy Refrigerator Temperature Alarm Aps With 9V Block Battery *1



MobilePhone Tex example as follows:



High Accuracy Refrigerator Temperature Alarm Aps With 9V Block Battery *1



2) When the Temperature returned to normal range ,our device will sent the GSM to user again.



Example as follow:

High Accuracy Refrigerator Temperature Alarm Aps With 9V Block Battery *1



3). User can user can keep track of Real-time temperature

When the user call to device and device will sent SMS to tell user what the temperature and humidity at anytime.



High Accuracy Refrigerator Temperature Alarm Aps With 9V Block Battery *1





3. Features



Measure temperature and humidity with external sensor.



1) Capacity 43,000-86,000 data memory.



2) Large LCD display to show logging information easily.



3) GSM,sound light Alarm if user-defined maximum/minimum values are exceeded.



4) Analysis software used to view graph, specific data and analysis for logging data.



5) Log interval: 2s-24h .



6) Backlight display shows more clearly.



7) External power or battery supply.Display show the battery indicator.







4. Production data sheet





Model Accuracy Measuring range Sensor type Capacity
S500-TH-GSM ±0.5°C/±5%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S500-EX-GSM ±0.5°C/±3%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S520-TH-GSM ±0.3°C/±3%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S520-EX-GSM ±0.3°C/±3%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S580-TH-GSM ±0.2°C/±2%RH -20~70°C 0~100%RH Temperature + humidity,internal 43000
S580-EX-GSM ±0.2°C/±2%RH -40~85°C 0~100%RH Temperature + humidity,external sensor with 3 meters 43000
S500-ET-GSM ±0.5°C -40~85°C Single Temperature external sensor with 3 meters 43000
S520-DT-GSM ±0.5°C -40~85°C Dual Temperature external sensor with 3 meters 43000
S520-ET-GSM ±0.3°C -40~85C Single Temperature external sensor with 3 meters 43000
S520-DT-GSM ±0.3°C -40~85°C Dual Temperature external sensor with 3 meters 43000







5. Technical Parameters




Resolution Temperature: ±0.1C, humidity: ±0.1%RH
Powe supply 9V block battery
Display Large lcd display
Dimension 135* 124 *35mm (5.31 *4.88*1.37 inch)
Lcd size 97*78mm (3.81*1.37 inch)
Weight 330g
Accessories

Toanalyzer software CD, USB connection cable, calibration certificate,

Warranty card and gifr box with carrying case.

Interface USB(U)





6. Production picture

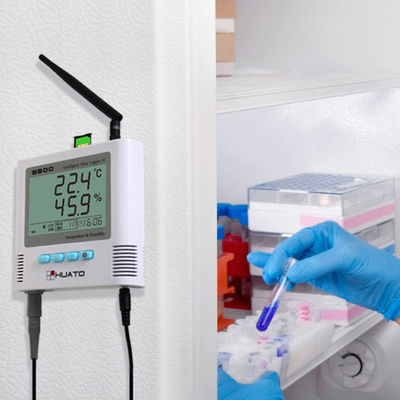

High Accuracy Refrigerator Temperature Alarm Aps With 9V Block Battery *1





FAQ



@ How to order?

1. Contact us on email, skype, kindly tell the model, quantity and your requirements, relative info will be provided by then.

2. If everything ok, pi will be sent.

3. Order will be arranged upon receipt of your payment, will let you know the producing process meanwhile.

4. Order be shipped out with tracking no. offered.

5. We will help tracking your order until it be delivered safely.



@ What's the delivery time?

From 1 to 30 days.



@ How about the warranty period?

If something wrong with our device, it can always be returned back to our factory for fix, 12 months for free under the condition of machine itself's problem.



@How do i know whether you've shipped my order or not?

Tracking no. will be offered as soon as your order be shipped out, before that, our sales will be there to check the production process and packaging status, will photo you the done order and let you know when the forwarder picked it up.



@ Why should i choose your company?

1. alibaba golden supplier for 4+ years.

2. factory, warmly welcome to visit our factory.

3. before shipping, all data loggers will be tested by machine for hours, sometimes,up to days to make sure no problems with the instruments, also got a seperate team to examine whether there's any scratch on the lcd, whether covered all the accessories needed, all the accessories are the right ones etc.

4. all emails and msn will be respond within 1 hour

5. always focus on helping clients fix the problem instead of dodging





Contact us

If any questions regarding to our GSM Data Logger, please do not hesitate to send us inquiry.
