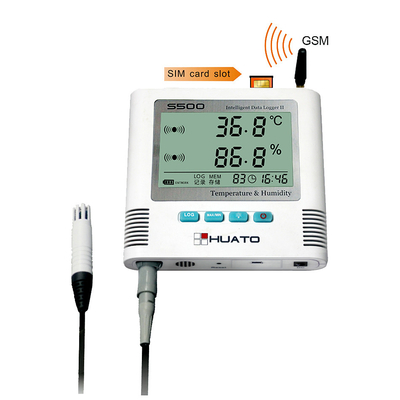

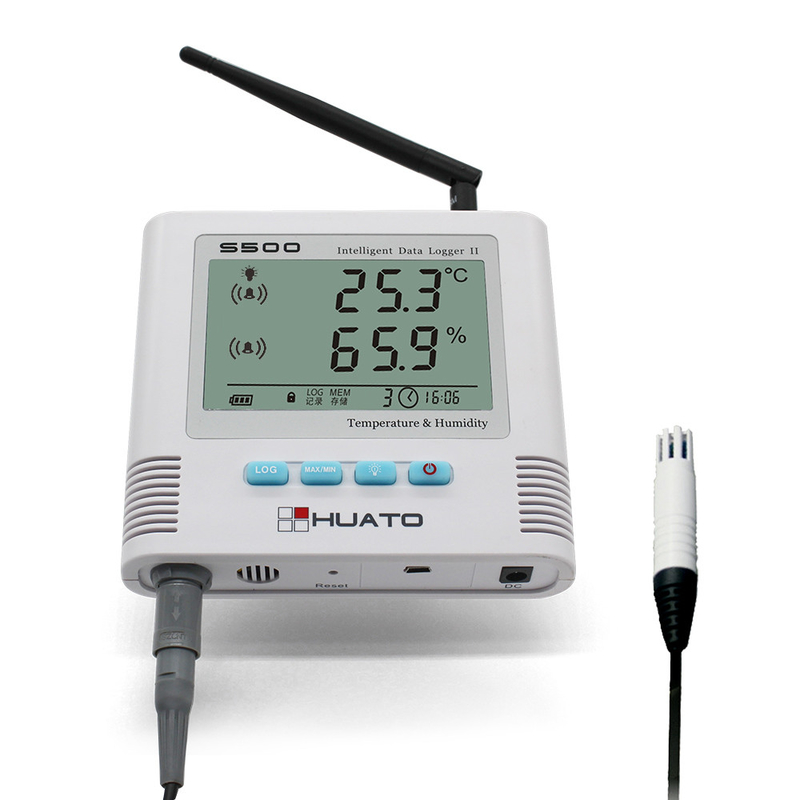

S500 Gsm Based Data Logger , Sms Temperature Alarm With External Sensor

Certification
Good quality Digital Thermometer Hygrometer for sales
Good quality Digital Thermometer Hygrometer for sales
I'm Online Chat Now

S500 Gsm Based Data Logger , Sms Temperature Alarm With External Sensor

China S500 Gsm Based Data Logger , Sms Temperature Alarm With External Sensor supplier
S500 Gsm Based Data Logger , Sms Temperature Alarm With External Sensor supplier S500 Gsm Based Data Logger , Sms Temperature Alarm With External Sensor supplier

Large Image :  S500 Gsm Based Data Logger , Sms Temperature Alarm With External Sensor

Product Details:

Place of Origin: Made in China
Brand Name: Huato
Certification: CE
Model Number: S500-EX-GSM

Payment & Shipping Terms:

Minimum Order Quantity: 1pc Tempearture Humidity GSM Data Logger 2g with External Sensor HUATO S500-EX-GSM
Price: Negotiable
Packaging Details: Standard Carton Box
Delivery Time: 1 working day after payment received
Payment Terms: T/T, Western Union, Paypal, RMB
Supply Ability: 5000units per month
Contact Now
Detailed Product Description
Description: Tempearture Humidity GSM Data Logger 2g With External Sensor Selling Point: GSM Alarm When Temperature Or Humidity Exceeds The Setting Limits
Temperature Range: -40~+85℃ Humidity Range: 0~100%RH
Temperature Precision: ±0.5℃ Humidity Precision: ±5%RH

Tempearture Humidity GSM Data Logger 2g with External Sensor HUATO S500-EX-GSM

Introduction

S500 GSM data logger was designed to monitor temperature & humidity with capability to send alarming message to phone numbers set up by customers when temperature data is out of pre-definded limits; and will send good news message when data is back within pre-defined limits. In addition,customer can get real-time data message by calling phone number in the logger.

This series use original sensor import from America or Switzerland, has high accuracy and stable. The user can also calibration the instrument by deviation.



Working princeple

1) If user defined maxi/mini temperature values are exceeded, our device will send SMS to USER’S Mobile phone. We list the GSM alarm example picture as follows:

MobilePhone Tex example as follows:

S500 Gsm Based Data Logger , Sms Temperature Alarm With External Sensor

2) When the Temperature returned to normal range ,our device will sent the GSM to user again.

Example as follow:

S500 Gsm Based Data Logger , Sms Temperature Alarm With External Sensor
3). User can user can keep track of Real-time temperature

When the user call to device and device will sent SMS to tell user what the temperature and humidity at anytime.

S500 Gsm Based Data Logger , Sms Temperature Alarm With External Sensor

Features

Measure temperature and humidity with external sensor.

1) Capacity 43,000-86,000 data memory.

2) Large LCD display to show logging information easily.

3) GSM,sound light Alarm if user-defined maximum/minimum values are exceeded.

4) Analysis software used to view graph, specific data and analysis for logging data.

5) Log interval: 2s-24h .

6) Backlight display shows more clearly.

7) External power or battery supply.Display show the battery indicator.



Specifications

ModelAccuracyMeasuring rangeSensor typeCapacity
S500-TH-GSM±0.5°C/±5%RH-20~70°C 0~100%RHTemperature + humidity,internal43000
S500-EX-GSM±0.5°C/±3%RH-40~85°C 0~100%RHTemperature + humidity,external sensor with 3 meters43000
S520-TH-GSM±0.3°C/±3%RH-20~70°C 0~100%RHTemperature + humidity,internal43000
S520-EX-GSM±0.3°C/±3%RH-40~85°C 0~100%RHTemperature + humidity,external sensor with 3 meters43000
S580-TH-GSM±0.2°C/±2%RH-20~70°C 0~100%RHTemperature + humidity,internal43000
S580-EX-GSM±0.2°C/±2%RH-40~85°C 0~100%RHTemperature + humidity,external sensor with 3 meters43000
S500-ET-GSM±0.5°C-40~85°CSingle Temperature external sensor with 3 meters43000
S520-DT-GSM±0.5°C-40~85°CDual Temperature external sensor with 3 meters43000
S520-ET-GSM±0.3°C-40~85CSingle Temperature external sensor with 3 meters43000
S520-DT-GSM±0.3°C-40~85°CDual Temperature external sensor with 3 meters43000

Analyzed Software interface

software-Jpg

Applications

It has been widely applied in agricultural research fields ,electronics, food industry, medical industry ,environmental protection and laboratory, etc.

Standard accessories

Battery+Screw+User manual+LogPro Software+USB cable

Optional accessories

AC-DC adapter+External alarm
